เครื่องทดสอบฉนวนไฟฟ้า CAT IV Insulation Tester/True RMS MultiMeter รุ่น MG320

เครื่องมือวัด DMM Digital multimeter มัลติมิเตอร์/เครื่องทดสอบฉนวนไฟฟ้า Insulation Tester (20GΩ/1000V) / True RMS MultiMeter ยี่ห้อ Extech, USA

Description

เครื่องมือวัด DMM : Digital multimeter มัลติมิเตอร์ /Insulation Tester / เครื่องมือวัด True RMS Digital Multimeter มัลติมิเตอร์

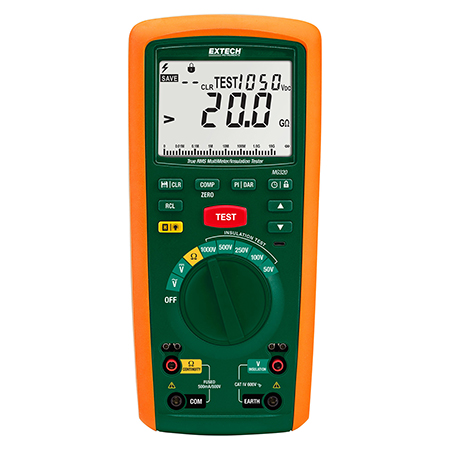

EXTECH MG320 : CAT IV Insulation Tester/True RMS MultiMeter ยี่ห้อ Extech, USA

20GΩ/1000V Insulation Tester with a True RMS MultiMeter

Combines a portable 20GΩ/1000V Insulation Tester with a True RMS MultiMeter. Insulation tester includes PI/DAR modes, programmable timer, and a comparator for custom test configurations and quick results. Multimeter functions include AC/DC Voltage, Resistance, and Continuity Test. Manually store/recall up to 99 readings. Designed with rugged housing and large backlit 6,000 count LCD display with analog bargraph. Complete with test leads, alligator clip, 6 x AA batteries, and soft case.

Features:

  • Measure Insulation Resistance to 20GΩ
  • 5 Test Voltage ranges
  • Polarization Index (PI) and Dielectric Absorption Ratio measurements (DAR)
  • Low Resistance measurement with Zero function
  • Programmable Timer feature sets the duration of test
  • Comparison Mode allows user to set the Pass/Fail values for insulation measurements
  • Step Voltage (10% steps at 50% to 120% of range)
  • Auto-discharge of voltage test signal
  • Lock Power On Function for hands-free operation
  • Manually store/recall up to 99 readings
  • Backlit 6,000 count display with analog bargraph
  • High voltage and overload indication
  • Data Hold to freeze displayed reading
  • Auto Power Off and Low battery indication
  • Complete with test leads, alligator clip, 6 x AA batteries, and soft case
For complete specs please download the product datasheet (not available for some accessories)
Specification:

Unit Range Resolution Basic Accuracy
 Insulation Resistance  50MΩ, 100MΩ, 200MΩ,500MΩ, 2000MΩ, 1GΩ, 10GΩ, 20GΩ  0.01MΩ  ±3%
 Insulation Test Voltages  50V, 100V, 250V, 500V, 1000V  0 to 10%
 AC/DC Voltage  600V  0.1V  ±2%
 Resistance  20kΩ  0.01Ω  ±1.5%
 Continuity  Yes
 Dimensions  8.9 x 4.1 x 2.3″ (225 x 103 x 59mm)
 Weight  1.5lbs (0.7kg)

Insulation Tester (20GΩ/1000V) with a True RMS MultiMeter

Extech MG320: CAT IV Insulation Tester/True RMS MultiMeter
20GΩ/1000V Insulation Tester with a True RMS MultiMeter EXTECH : MG320
Combines a portable 20GΩ/1000V
Insulation Tester with a True RMS
MultiMeter. Insulation tester includes
PI/DAR modes, programmable timer,
and a comparator for custom test
configurations and quick results.
Voltage check on motor starter
Insulation test on pump motor

CE   CAT IV 600V  warranty12

Accessories:
  • Complete with test leads, alligator clip, 6 x AA batteries, and soft case

หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า


measuring instruments  Download ดาวน์โหลดไฟล์ข้อมูลสินค้า

PDF MG320 Brochure ( 312KB )
PDF MG320 Instruction Manual ( 1,300KB )
PDF MG320 CE Declaration of Conformity ( 215KB )
