Description

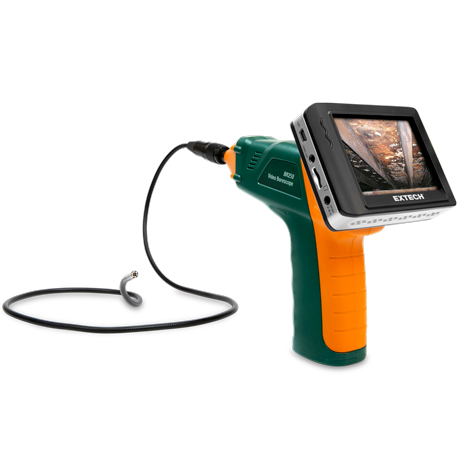

Borescope Inspection Camera กล้องงู, Waterproof Video Borescope Inspection Camera

• Detachable wireless 3.5″ (89 mm) TFT LCD color monitor can be viewed from a remote location up to 32 ft (10 m) from the borescope
• 16 GB microSD memory card (with included SD adaptor) for storing images (JPEG) and videos (AVI) with date/time stamp that can be played back on the wireless monitor or transferred to a PC
• Mini waterproof (IP67) 5.2 mm diameter camera probe with 39″ (1 m) goose-neck cable retains configured shape
• Built-in six bright LED lamps with dimmer function to illuminate viewed object
• Glare-free close-up field of view
• Magnetic mount conveniently holds the monitor in a remote area for viewing
• Easy-to-navigate menu in 10 languages
• Video output for connecting additional monitor
• Complete with 5.2 mm camera probe (BR-5CAM-A), probe tools (mirror, hook, magnet, and fixture), 4 AA batteries, rechargeable display battery, microSD memory card with SD adaptor, USB cable, video cable, Universal adaptor with multi-plugs (US, EU, UK, AUS), magnetic base stand, and hard case

Unit	Range
Camera Probe and Handle
Pixels	640 x 480 (NTSC)
Transmission Frequency	2.4GHz
Transmission Range	32ft (10m) unobstructed view
Viewing direction	Viewing Angle 48°
Focus distance from object	~1.2″ to 3.1″ (3 to 8 cm)
Shaft diameter	5.2 mm
Camera probe cable length	39″ (1m)
Minimum bend radius	2.36″ (60 mm)
Handle dimensions	7.3 x 5.7 x 1.6″ (186 x 145 x 41 mm)
Weight	13.4 oz (381 g)
Monitor
LCD Screen Type	3.5″ TFT
Pixels	320 x 240
Video Output Level	0.9 to 1.3 V @ 75Ω
Frame Rate	5, 10, 15, 20, 25, 30FPS
Video Resolution	640 x 480 (avi format)
Image Resolution	640x 480 (jpeg format)
Languages	English, Chinese, German, French, Spanish, Portuguese, Italian, Japanese, Dutch, and Russian
Monitor Dimensions	4 x 2.8 x 1″ (101.5 x 70.5 x 25 mm)
Operating/Charge Time	1.5 hours/3 hours
Weight	4.6 oz (130 g)

Applications:

• Home inspection:  Inspect in walls for mold, insect infestation, electrical wire or water pipe location
• HVAC: Inspect inside ducts, behind motors and compressors
• Automotive: View inside or around engines and transmissions
• Government: Safety and security inspections
• Industrial: Inspect weld integrity, process equipment, gears, molding machines
• Aerospace: Aircraft inspections for contamination, debris, cracks or other damag

Extech’s Video Borescope with a 5.2 mm diameter camera probe makes it possible to inspect hard to access areas through a small opening. It provides a glare-free close-up field of view. A color wireless monitor is included and can be detached from the base and viewed from a remote location up to 32 ft (9.75 m) away. Capture images/videos with date/time stamp and play back on the monitor or viewed on a PC.

หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า

---

  Download ดาวน์โหลดไฟล์ข้อมูลสินค้า

กล้องส่องในท่อ Borescope EXTECH BR250-5

  BR250-5 Brochure ( 377KB )

  BR250-5 Instruction Manual ( 986KB )

  BR250-5 CE Declaration of Conformity ( 15.6KB )
