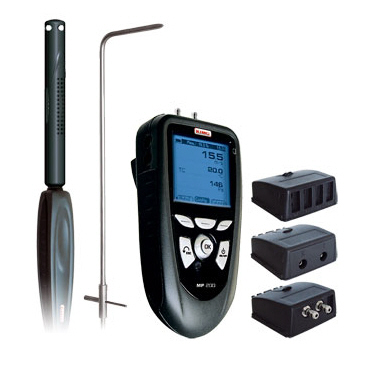

เครื่องวัดความเร็วลม แบบ Pilot tube ความดันลม Pressure KIMO MP200G

Description

เครื่องวัดความดัน ความเร็วลม Flow Rate,  Pressure , Air Velocity , Air Flow, Temperature

MP200G : เครื่องความเร็วลม ความดัน Pressure, Air Velocity, Air Flow, Temp Meter ยี่ห้อ KIMO, France

Connection :
Interchangeable measurement modules (current/voltage, thermocouple, pressure),
Wireless connection Intrument/Computer,
Smart-Plus system, probes automatically recognized when connected to the instrument.

Measuring ranges

MANOMETER::

Pressure
MP200 P : Pressure module 0-500 Pa • Resolution 0.1 Pa
MP200 M : Pressure module 0-2500 Pa • Resolution 1 Pa
MP200 G : Pressure module 0-10,000 Pa • Resolution 1 Pa
MP200 H : Pressure module 0-500 mbar • Resolution 1 mbar
MP200 HP : Pressure module 0-2000 mbar • Resolution 1 mbar

Velocity
Pitot : 2 to 100 m/s • Resolution 0,1 m/s
Debimo blades : 4 to 100 m/s • Resolution 0,1 m/s

Airflow
Pitot : 0 to 99,999 m³/h • Resolution 1 m³/h
Debimo blades : 0 to 99,999 m³/h • Resolution 1 m³/h

TEMPERATURE
Thermocouple K : -200 to +1300°C • Resolution 0,1°C
Thermocouple J : -100 to +750°C • Resolution 0,1°C
Thermocouple T : -200 to +400°C • Resolution 0,1°C

AIR QUALITY
CO / temperature probe
CO : from 0 to 1000 ppm • Resolution 0,1 ppm from 0 to 100 ppm, 1 ppm beyond
Temperature : from -20°C to +80°C • Resolution 0,1 °C

CURRENT / VOLTAGE
2,5 V • Resolution 0,001V
from 0 to 0 V • Resolution 0,01V
from 4/20 mA • Resolution 0,01mA

Detailed functions ::

MICRO-MANOMETER
Pressure : Automatic (MP200P) or manual self calibration (MP200 M, MP200 G), select units, pressure integration (0 to 9), point / point average, automatic point / point average, automatic average, hold, min/max values, standard deviation, storage.

Velocity : select Pitot tube or Debimo or coefficient for others sensing elements, select duct, select units, point / point average, automatic point / point average, automatic average, temperature balancing (manual and automatic), manual air pressure balancing, K2 factor, hold, min/max values, standard deviation, storage.

THERMOCOUPLE THERMOMETER
Select units, select thermocouple type, Delta T, hold, min/max values, storage.

CURRENT / VOLTAGE
Adjustable scales, hold, min/max values, storage.

SONDE CO / TEMPERATURE
Audible alarm (2 thresholds), hold, min/max values, storage

Measuring units
• Pressure : Pa, mmH₂O, mbar, hPa, In wg, mmHg, DaPa
• Velocity : m/s, fpm, Km/h, mph
• Airflow : m³/h, cfm, l/s, m³/s
• Temperature : °C, °F
• Current/voltage : V, mA
• CO/temperature : ppm, °C or °F

  Download Brochure ดาวโหลดโบร์ชัวร์สินค้า

  MP200 Brochure   ( 981kb )
