เครื่องทดสอบความต้านทานไฟฟ้าพื้นผิว > Surface Resistance Tester > เครื่องวัดความต้านทานผิววัสดุ > ESD อีเอสดี > Surface Resistance Meter  รุ่น AE-780 เครื่องวัดไฟฟ้าสถิตย์ > เครื่องมือวัดไฟฟ้าสถิต > เครื่องตรวจสอบไฟฟ้าสถิตย์ เครื่องมือทดสอบไฟฟ้าสถิตย์ เครื่องวัด ESD

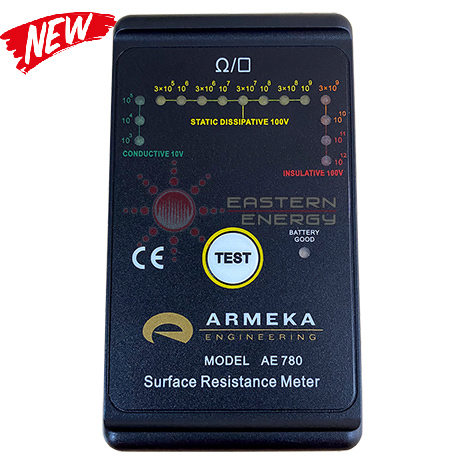

AE-780 : Surface Resistance Meter ยี่ห้อ Armeka, Finland

DECADE SCALE 103        = 1 kΩ 104        = 10 kΩ 105        = 100 kΩ 3 x 105   = 300 kΩ 106 = 1 MΩ 3 x 106  = 3 MΩ 107 = 10 MΩ 3 x 107  = 30 MΩ 108 = 100 MΩ 3 x 108  = 300 MΩ 109 = 1000 MΩ 3 x 109  = 3000 MΩ 1010 = 10,000 MΩ 1011      = 100,000 MΩ 1012      = 1,000,000 MΩ

AE-700 is an ultra wide-range, battery operated, portable instrument for measuring Surface Resistivity of virtually any flat surface conforming to ASTM D-257 standard by using recommended parallel bar sensing probe. In the circuit industry, products such as packaging materials, ESD shielding bags, work bench surfaces, static dissipative table and floor mats, conveyor belts, etc, have resistance values which need to conform to stringent specifications, Moreover, these values are expected to fall with in specified limits. The Surface Resistivity Meter can play a vital role in monitoring and checking the resistivity characteristic of the above items.

Features:

• AE-780 is a light weight, pocket-sized surface resistance meter. The meter offers an easy way to test conductive, anti-static and static dissipative surfaces for electrical resistivity.
• AE-780 is designed to be used in various materials in all fields of production.
• Resistance limits are 103-1012 Ω and the test voltage ranges are 10V or 100V.
• AE-780 Surface Resistance Meter -kit includes a tester, two accordation cables, 9 volt battery and a certificate of calibration.
• AE-780-1 Accessory kit includes two 5 lbs probes and a case.

 AE-780 Brochure (1,198 KB)

 AE-780 Instruction Manual (912 KB)

  AE-780 Certification of Calibration ( 344KB )
