เครื่องบันทึกค่าวัดดัชนีความร้อน Heat Stress WBGT Datalogger รุ่น TM-188D

฿6,500.00

เครื่องวัดอุณหภูมิ Heat Stress WBGT Meter (Wet Bulb Globe Temperature) Datalogger ยี่ห้อ Tenmars, Taiwan

Description

เครื่องมือวิทยาศาสตร์ อุปกรณ์วิทยาศาสตร์ > เครื่องวัดความร้อน WBGT เครื่องตรวจวัดความร้อน Wet Bulb Globe Temperature

เครื่องบันทึกค่าวัดดัชนีความร้อน WBGT, เครื่องตรวจวัดความร้อน Wet bulb globe temperature (WBGT), Black globe temperature(TG), Wet bulb(WET) และ Dew point(DEW)

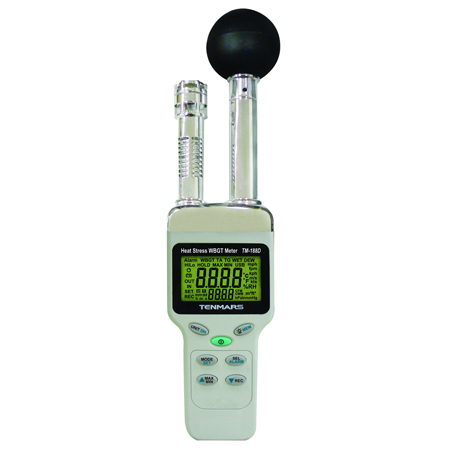

TM-188D : เครื่องบันทึกค่าวัดดัชนีความร้อน Heat Stress WBGT Meter/Datalogger ยี่ห้อ Tenmars, Taiwan

Measures WBGT, Black Globe Temperature, Humidity, Air Temperature, Wet Bulb and Dew Point

The HEAT STRESS WBGT METER is quick-response with accurate measurement for the effects of temperature, humidity, and direct or radiant sunlight. This instrument is ideal for the athletic trainers, military, occupational (Industrial) hygienists, outdoor worker and the sports medicine specialists; and it’s designed according to the regulations mentioned below.
เครื่องวัดค่าดัชนีความร้อน WBGT
Features:
  • Quick-response capacitance sensor, accurate measurement for wet bulb globe temperature(WBGT), black globe temperature(TG), humidity(%RH), air temperature(TA), wet bulb(WET) and dew point(DEW).
  • Max/Min and data hold.
  • Low battery indication.
  • LCD display with LED backlight.
  • Viewing data records.
  • Switch the temperature unit to ℃ or ℉.
  • Brass black ball in 50mm diameter.
  • WBGT alarm setting.
  • Auto power off with disable function.
  • Data logging capacity: 12000 records, USB PC serial interface (TM-188D).
  • Sampling interval: Max 24 hours; Min 1 Second (TM-188D).

Specifications:
TM-188& TM-188D (with datalogger)
(23℃±5℃) Wet bulb globe temperature (WBGT) :

Unit Range Resolution Accuracy@15~40℃
 indoor & Outdoor without sunlight   0 ~ 59.0 0.1  ±1.0
 32.0 ~ 138.0 0.1  ±1.8
 Outdoor With sunlight  0 ~ 56.0 0.1  ±1.5
 32.0 ~ 132.0 0.1  ±2.7
 ※indoor & outdoor without sunlight:  WBGT = (0.7×WET)+(0.3×TG) Outdoor with sunlight: WBGT=(0.7×WET)+(0.2×TG)+(0.1×TA)

Air temperature (TA):

Unit Range Resolution Accuracy@15~40
 ℃  0 ~ 50.0 0.1  ±0.8
 ℉  32.0 ~ 122.0 0.1  ±1.5

Black globe temperature (TG):

Unit Range Resolution Accuracy@15~40
 ℃  0 ~ 80.0 0.1  ±0.6
 ℉  32.0 ~ 176.0 0.1  ±1.1

Relative Humidity (%RH):

 Measurement Range  1 ~ 99%
 Accuracy  ±3.0%RH(20~80%) ±5.0%RH(80%)
 Resolution  0.1%

Dew point temperature (DEW):

Unit Range Resolution
 ℃  -35.3 ~ 48.9  0.1
 ℉  -31.5 ~ 120.1  0.1
 The value is calculated from the RH and Air temperature.

Wet bulb temperature (WET):

Unit Range Resolution
 ℃  -21.6 ~ 50.0  0.1
 ℉  -6.9 ~ 122.0  0.1
The value is calculated from the RH and air temperature.
  • Dimension : 300 x 70 x 50mm (L x W x H)
  • Weight : 220g. (Without batteries).
  • Power supply : 006P 9V,or AC100~240V DC 9V/ 0.5A(9mm).
  • Battery life : 200 hours.
  • Operating Temperature & Humidity :0°Cto +50°C.
  • Storage temperature & humidity : -10°Cto +50°C.
  • Data output :USB PC serial interface,12000 records. (TM-188D)
  • LCD: 52mm(W)x36mm(L) monochrome LCD and backlight.
  • Standard accessories: 006P 9V battery x1, User’s manual x 1,  Carrying x1,
  • USB cable(TM-188D) x1, AC100~240V to DC9V/0.5A (9mm)x1 (TM-188D), Install CD disk(TM-188D) x1

เครื่องวัดค่าดัชนีความร้อน WBGT

CETenmars TM-188D :Heat Stress WBGT Meter (Wet Bulb Globe Temperature)Tenmars TM-188D :Heat Stress WBGT Meter (Wet Bulb Globe Temperature)

In order to measure the WBGT index, you should refer to the following regulations:
ISO7243 : Hot environments. Estimation of the heat stress on working man.
ISO7726 : Ergonomics of the thermal environment-instruments for measuring physical quantities.
OSHA :  Occupational Safety and Health Administration.
JISHAJapan Industrial Safety and Health Association.

หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า


measuring instruments   Download ดาวน์โหลดไฟล์ข้อมูลสินค้า
เครื่องวัดค่าดัชนีความร้อน WBGT
PDFTM-188D Instruction Manual ( 0KB )
