Description
General Industrial Instrument, General Scientific Instrument เครื่องมือวัด >เครื่องวัดและบันทึกอุณหภูมิ 88161 Temp. USB Datalogger w/PDF report
เครื่องบันทึกอุณหภูมิ พร้อมหัวโพรบ ยาว 2.0 เซนติเมตร สายโพรบ ยาว 200 เซนติเมตร

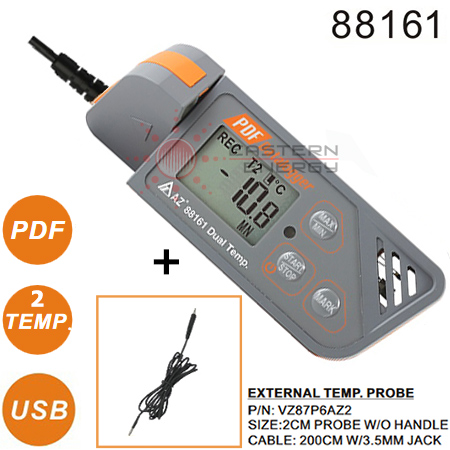

AZ88161 : Dual Temperature USB Datalogger w/PDF report w/External probe 2cm. ยี่ห้อ AZ-Instrument, Taiwan
P/N: VZ87P6AZ2 : External Temp. Probe Size 2cm. With out Handle
Cable : 200cm w/3.5mm Jack
Easy-to-use Datalogger Records Temperature with Date/Time Stamp
The datalogger is designed with a rugged housing and a standard USB connector where stored readings (up to 48,000 data) are conveniently transferred to a PC in PDF or Excel® spreadsheet format when plugged in. Additional features include an 8-location logger bookmark, 6-language options, programmable sampling interval, adjustable alarm, and password-protected security log-in. Large LCD optimizes viewing and the smart LED provides color-coded humidity, and temperature reading status.Datalogger, also been called as Data Recorder or Temperature Recorder, it’s the device that can measure and record the Temperature value, which had been widely used in a variety applications that related to Temperature Monitoring.
- Plug & Play temperature datalogger with USB 2.0 connector
- Software & driver are not required for any operation
- Automatically generate a PDF and Excel report while plugged into computer
- High accuracy thermistor sensor
- Completely programmable by users for maximum flexibility includes: 6 languages, sampling interval, start delay, alarm delay, unit, alarm range, alarm type, password and user name
- Compact, light and IP67(88160) or IP65 (88161)
- Big LCD provides excellent viewing experience
- Count key to review max. & min value of logged data
- Dual color LED provides instant status indicator: REC and High/Low temperature
- Large memory capacity, 48000 readings.
- Powered by 2pcs CR2032 battery, easy replacement.
- Mark key to provide 8 marking during transition period
- PDF file contains summary, graph and detailed data list
- EN12830 and RoHS compliance
| ( Model ) Comparisons: AZ8816x Series |
 รุ่น 88160 |
  รุ่น 88161 |
รุ่น 88162 |
||||
| Temp. Datalogger | Temp. Datalogger w/Ext. Probe 15cm. |
Temp. Datalogger w/Ext. Probe 2cm. |
Temp. + %RH Datalogger | ||||
| Temp. range | NTC thermistor, -30~70°C (-22~158°F) | NTC thermistor, -30~70°C (-22~158°F) | NTC thermistor, -30~70°C (-22~158°F) | ||||
| Temp. resolution | 0.1°C , 0.1°F | 0.1°C , 0.1°F | 0.1°C , 0.1°F | ||||
| Temp. Accuracy | ±0.5°C | ±0.5°C | ±0.5°C | ||||
| Humidity range | – | – | Capacitor, 0.1~99.9%RH | ||||
| Humidity resolution | – | – | 0.1%RH | ||||
| Humidity Accuracy | – | – | ±3% (at25°C, 10~99%), others ±5% | ||||
| Ext. Temp. range | – | NTC thermistor, -30~70°C , -22~158°F | – | ||||
| Ext. Temp. resolution | – | 0.1°C , 0.1°F | – | ||||
| Ext. Temp. Accuracy | – | ±0.5°C | – | ||||
| Sampl ing points | 48000 readings | 24000 Int. and 24000 Ext. | 24000 Temp. and 24000 Humidity | ||||
| Sampl ing interval | 30 seconds, 5,10,30,60,90,120 minutes | ||||||
| Start delay | 0, 5,30,45,60, 90,120 minutes and 24 hours | ||||||
| Alarm range | Programmable from -30 to 70°C and 1~99.9%RH ( for 88162 only ) | ||||||
| Alarm delay | 0, 5,30,45,60, 90,120 minutes | ||||||
| Alarm type | Single Event, Cumulative, Disable | ||||||
| Operation keys | 3 Keys (Start/Stop key & Mark key & Count key) | ||||||
| LED indicator | REC, High / Low alarm | ||||||
| Battery | 2PC 3.0V CR2032, 3 months l ife time | ||||||
| Operating temp. | -30~70°C (Logging status); room temp.(PC mode) | ||||||
| Operating RH% | Humidity < 90% | ||||||
| Storage temp. | -40~85°C | ||||||
| Storage RH% | Humidity < 90% | ||||||
| Dimensions | 110(L)*45(W)*17(T) mm | ||||||
| Weight | ~80g | ||||||
Accessories:
- Includes 2 CR2032 batteries, USB cover (can be used as a stand), wall mounting screw, and built-in hanger, External Temp. Probe Size. 2cm.(VZ87P6AZ2)
Optional accessory:
- VZ87P6AZ1 or VZ87P6AZ2 external temp. Probe (for 88161 only)
Easily generate a PDF report or Excel spreadsheet when plugged into a PC.
+
Ordering Information:
88160……………USB Temperature Datalogger w/PDF report
88161……………USB Dual Temperature Datalogger w/PDF report ( w/External Temp. Probe Size. 15cm. or w/External Temp. Probe Size. 2cm. )
88162……………USB Temperature + %RH Datalogger w/PDF report
