Description
ค่ามาตรฐานของก๊าซคาร์บอนมอนนอกไซด์ ในบรรยากาศของการทำงาน ควรมีค่าไม่เกิน 50 ppm
อ้างอิงจาก ประกาศกระทรวงมหาดไทย เรื่อง ความปลอดภัยในการทำงานเกี่ยวกับสภาวะแวดล้อม http://www.oshthai.org/cmslite/download/pdf/3environchem.pdf
ที่มาข้อมูล : http://oshthai.labour.go.th/legisra_labour.aspx
Carbon Monoxide meter > CO Meter > เครื่องตรวจวัด > เครื่องวัดก็าซคาร์บอนมอนนอกไซด์ รุ่น SPD200/CO
เครื่องวัดก๊าซคาร์บอนมอนนอกไซด์ Carbon Monoxide Meter > Co Meter รุ่น SPD200/CO
CO Sensor from RAE SYSTEMS, Made In England
เซ็นเซอร์ตรวจวัดคาร์บอนมอนนอกไซด์ มาตราฐาน ผลิตจากประเทศอังกฤษ
|

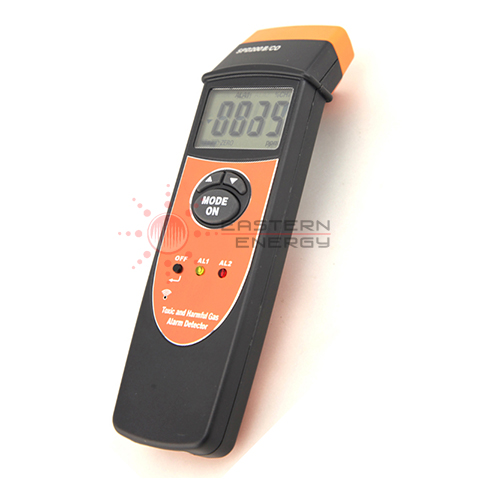

SPD200/CO: CO Meter เครื่องวัดก๊าซคาร์บอนมอนนอกไซด์
For testing Carbon Monoxide density in industries such as mining,metallurgy, petrochemical, pharmaceutical, waste water treatment, papermaking and infrastructure construction
Features:
The thickness of carbon monoxide
|
Explanation
|
0~1PPM
|
The normal content of carbon monoxide in air
|
50PPM
|
The maximum thickness of carbon monoxide when a person will stay in a sealed room for 8 hours
|
100PPM
|
The thickness threshold of carbon monoxide for the environment that a person is in
|
200PPM
|
Person may get a slight headache, become tired, nauseas and dizzy
|
800PPM
|
Aperson may be dizzy, nauseas and tic and die in 2 to 3 hours
|
- It uses the intellectualized design and has gotten multiple functions.
- With highlight backlight display and acousto-optic alarming, it is easily configured.
- The embedded temperature compensation enables the device to measure the correct value in the environment temperature of -10~50℃.
- As its case is ergonomically designed, it looks handsome, feels good and is easy to carry.
Specification:
Measurement display | Displays with 4 digit LCD |
Measuring range | 0~1000PPM |
Resolution | 1PPM |
Measurement error | ±5% |
Over measurement range display | –OL– |
Alarming method | acousto-optic alarming |
Working principle of the sensor | electrochemistry sensor |
The service life of the sensor | 2 years (it can be then replaced) |
Power supply | 3×1.5V AAA alkaline batteries |
Battery service life | about 100 hours of continuous use (when the backlight is off). |
Size | 172×51×26 (mm) |
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า

SPD200/CO Brochure ( 0KB )
