Description
ค่ามาตรฐานของก๊าซคาร์บอนมอนนอกไซด์ ในบรรยากาศของการทำงาน ควรมีค่าไม่เกิน 50 ppm
อ้างอิงจาก ประกาศกระทรวงมหาดไทย เรื่อง ความปลอดภัยในการทำงานเกี่ยวกับสภาวะแวดล้อม http://www.oshthai.org/cmslite/download/pdf/3environchem.pdf
ที่มาข้อมูล : http://oshthai.labour.go.th/legisra_labour.aspx
Carbon Monoxide meter > CO Meter > เครื่องตรวจวัด > เครื่องวัดก็าซคาร์บอนมอนนอกไซด์ รุ่น 7701

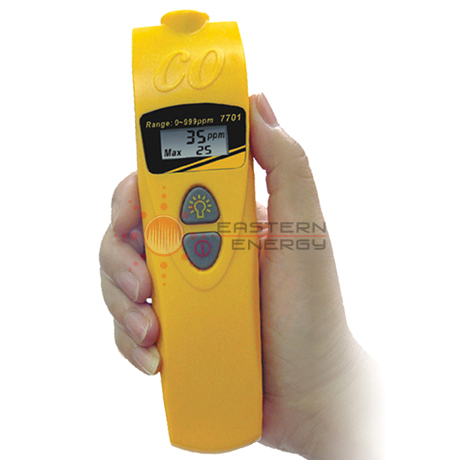

เครื่องวัดก๊าซคาร์บอนมอนนอกไซด์ Carbon Monoxide Meter > Co Meter รุ่น 7701
7701: CO (Carbon Monoxide) Monitor ยี่ห้อ AZ-Instrument, Taiwan
CO meter, also been called as CO detector or Carbon Monoxide detector, it’s the device that can detect the presence of Carbon Monoxide (CO), which had been widely used for indoor air quality measurement.
AZ 7701 CO meter was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring Instrument.
เครื่องวัดก็าซคาร์บอนมอนนอกไซด์ CO meter
Features:
- CO LEVELS FORM 0 TO 999 ppm
- POCKET TYPE , DIGITAL DISPLAYS
- WARNING CARBON MONOXIDE LEVEL IS ADJUSTABLE
- DUAL DISPLAY CO READING AND MAX. READING
- BACKLIGHT FEATURES WORKING IN THE DARK
- 2 POINTS (0/500ppm ) CO CALIBRATION
- BATTERY LOW INDICATOR
- A LONG LIFE ELECTROCHEMICAL SENSOR
- PRESET AUDIBLE ALERT TRIGGERS ABOVE 25PPM INDICATING THRESHOLD OF DANGEROUS CO CONCENTRATION
เครื่องวัดก็าซคาร์บอนมอนนอกไซด์ CO meter
Specification:
CO range | 0~999 ppm |
Resolution | 1 ppm |
Accuracy
(at 20+5 C, 50+20%RH)
|
±20% at 0~100ppm;
±15% at 100~500ppm
Others range are not specified
|
Response time | within 60 seconds |
LCD size (mm, HxW) | 11×26 |
Operating condition | 0~50°C , 5~95% RH (avoid condensation) |
Storage condition | -20~ 50°C,0~95%RH(avoid condensation) |
Power supply | 3pcs. AAA batteries |
Meter size ( LxWxH ) | 175mm x 47mm x 28mm |
Weight | 120g |
เครื่องวัดก็าซคาร์บอนมอนนอกไซด์ CO meter
CO level affects human health
ppm | Symptoms and applicable standard | ppm | Symptoms and applicable standard | |
0-1
|
Normal background levels
|
100
|
Remove employees from enclosed
space if the CO concentration exceeds 100ppm per OSHA exposure limit |
|
9
|
Maximum indoor air quality level:
Maximum allowable concentration per ASHRAE Residential standards 62-1989 for living area. |
200
|
Mild headache, fatigue, nausea and
dizziness w/i 2-3 hrs. |
|
25
|
Maximum limit 8 hrs of continuous
exposure per California OSHA workplace standards. |
400
|
Frontal headache, life threatening
after 3hrs. Maximum concentration in flue gas per the US EPA and AGA standards. |
|
35
|
Maximum 8 hrs average exposure
level per US OSHA workplace standards. |
800
|
Dizziness, nausea, convulsions, death
w/i 2-3 hrs. |
|
50
|
Maximum concentration for continuous
exposure in any 8 hrs average level per OSHA standards. |
1600
|
Nausea w/i 20 min.,death w/i 2-3 hrs
|
Applications:
- Ambient air checks on residential appliances
- CO emission of hot air furnaces and boilers
- Combustion checks on fireplaces, and grills
- HVAC service on furnaces and hot water heater
- Home Inspections
- Industrial environments where the accumulation of CO is possible
Accessories:
-
Meter, manual, AAA alkaline batteries, plain box, wrist strap, soft carry pouch
