เครื่องวัดคลื่นแม่เหล็กไฟฟ้า RF EMF Strength Meter รุ่น 480836

Description

เครื่องวัดคลื่นแม่เหล็กไฟฟ้า ( Electro Magnetic Field Meter, EMF Meter )

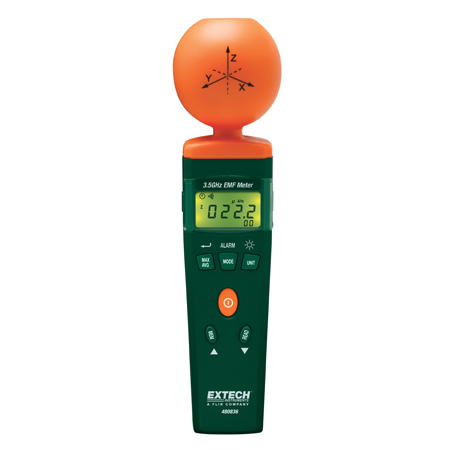

480836 : RF EMF Strength Meter ยี่ห้อ Extech, USA

High Frequency measurement for EMF (50MHz to 3.5GHz)

This RF EMF Strength Meter monitors high frequency radiation in the 50MHz to 3.5GHz range. Ideal for mobile phones, cell phones, base stations, locating RF hotspots, wireless network (Wi-Fi) RF detection, RF”Electrosmog” detection, and microwave leakage. It features non-directional measurement with 3-channel (triaxial) measurement probe, Max Hold and Average functions, and manual store/recall of up to 99 data sets. In addition, there is an audible alarm with a user-selectable threshold. The meter comes complete with a 9V battery and carrying case.

Features:

Ideal for EMF measurements of mobile/cell phones, base stations and microwave leakage
Measurement optimized for 900MHz, 1800MHz and 2.7GHz
Non-directional (isotropic) measurement with three-channel (triaxial) measurement probe
Max Hold and Average functions
Manual store/recall up to 99 sets
Level exceed audible alarm with user selectable threshold
Complete with 9V battery and carrying case

For complete specs please download the product datasheet (not available for some accessories)

Specifications:

Sensor Type	Electric Field
Frequency Range	50MHz to 3.5GHz (Measurement optimized for 900MHz, 1800MHz and 2.7GHz)
Units of Measure	mV/m, V/m, μA/m, mA/m, μW/m2, mW/m2, W/m2, μW/cm2, mW/cm2
Measuring Ranges	20mV/m to 108.0V/m 53μA/m to 286.4mA/m 1μW/m2 to 30.93W/m2 0μW/cm2 to 3.093mW/cm2
Resolution	0.1mVm, 0.1mA/m, 0.1mW/m2, 0.001mW/cm2
Audible Alarm	Adjustable threshold with On/Off
Memory	Manual store/recall of 99 sets
Dimensions	9.3 x 2.4 x 2.4″ (237 x 60 x 60mm)
Weight	7oz (200g)

Applications:

• RF electromagnetic wave field strength measurements
• Mobil phone base station antenna radiation
power density measurement
• Radiation safety level tests
• Locating RF “Hot Spots” in the workplace or at home
• Microwave oven leakage tests
• RF “Electrosmog” detection
• Wireless network (Wi-Fi) RF detection

Accessories:

• Complete with 9V battery and carrying case
