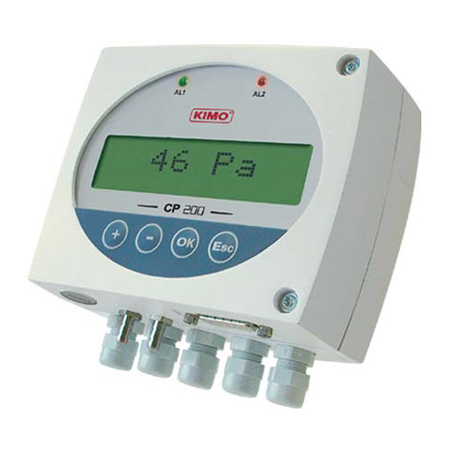

CP200 : Differential Pressure transmitter ยี่ห้อ KIMO, France
Differential pressure transmitter model CP200. Configurable range from -1000/+1000 Pa (minimum configurable range: 0 to ± 100 Pa) up to -2000/+2000 mBar (minimum configurable range: 0 to ± 200 mBar). 2 4-20 mA or 0-10 V outputs, 4-wire technology, RS 232 output, 2 RCR relays 6A / 230Vac (for models with no display, relay configuration via optional software). Configuration via keypad (for models with display) or via optional software (for all models). 24 Vdc/Vac or 115 Vac or 230 Vac power supply. With or without alphanumeric 2-line backlit display. ABS IP65 housing. Supplied with adjusting certificate. Optional: SQR/2 calculation function of air velocity and airflow, LCC-300 configuration software, calibration certificate.
- Measuring ranges : from 0/+100 Pa to -2000/+2000 mBar
- Configurable intermediary and central zero ranges
- Air velocity and airflow functions (optional)
- Simultaneous display of 2 parameters
- 2 output 4-20 mA or 0-10 V (4 wires), RS 232, 2 RCR relays 6A/230 Vac
- 2 visual (dual color LED) and audible (buzzer) alarms
- Software or keypad configuration
- ABS – IP 65 housing, with or without 2-line backlit display
- Mounting with the 1/4 turn system with wall-mount plate
CP201 | • from -1000/+1000 Pa • Barbed fittings Ø 6,2 mm • Unit of measurement : Pa, mmH2O, mbar, inWG, mmHG |
CP202 | • from -10 000/+10 000 Pa • Barbed fittings Ø 6,2 mm • Unit of measurement : Pa, mmH2O, mbar, inWG, mmHG |
CP203 | • from -500/+500 mbar • Compression fittings Ø 4 x 6 mm • Unit of measurement : mbar, inWG, mmHG, KPa, PSI |
CP204 | • from -2000/+2000 mbar • Compression fittings Ø 4 x 6 mm • Unit of measurement : mbar, inWG, mmHG, KPA, PSI |
• Power supply : 24 Vca /Vdc, 115 Vac or 230 Vac
• Output : 2 x 4-20 mA or 2 x 0-10 V
• Functions : pressure, air velocity, airflow with Pitot tubes and Debimo, manual auto-zero, measuring integration, measuring correction factor, temperature compensation.
