เครื่องวัดความต้านทานดิน Earth Ground Resistance Tester

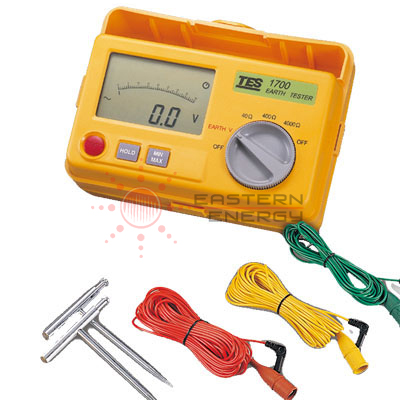

TES-1700: Digital Earth Tester ยี่ห้อ TES, Taiwan
Includes all hardware necessary to measure earth ground in 3 ranges from 0 to 3999Ohm
TES-1700 Digital Earth Resistance Tester without Tripping Earth Leakage Current 3 3/4 Digit LCD Display, TES-1700 is an Earth Ground Resistance Tester which includes all hardware necessary to measure earth ground in 3 ranges from 0 to 3999 omega. Also tests AC/DC Voltage, resistance and continuity. Featuring Automatic zero adjustment and three earth ground resistance ranges 39.9Ω/399.9Ω/3999Ω. Complete with test leads, 2 auxiliary earth bars, carrying case, protective rubber holster and eight x 1.5V AA batteries.
Features:
- Capable of measuring earth voltage.
- Data hold , MAX / MIN function.
- Auto power off function: The timer operates automatically about 3 minutes when the ” Test Button Switch ” are pressed to keep the tester power on.
- 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
- In addition to the facility for precision measurement, test leads for simplified two wire measuring system also supplied as standard accessories.(unit can be hung from the neck for simplified measurement).
- Automatic warning when resistance of auxiliary earth. Spikes is in excess of tolerance.
- Designed to meet IEC1010-1 safety standard.
For complete specs please download the product datasheet (not available for some accessories)
Specifications:
Measuring Range and Accuracy ( at 23°C and 45-75%RH )
Function | Measuring range | Accuracy | Overload Protection |
Earth Voltage | 0 ~ 399.9V (50Hz, 60Hz) | ± (1%rdg+4dgts) | 400Vrms / 1 minute |
Earth Resistance | 0 ~ 39.99Ω | ±(2%rdg+0.2Ω) | 250Vrms / 10 seconds |
0 ~ 399.9Ω | ±(2%rdg+3dgts) | ||
0 ~ 3999Ω |
Current Consumption ( typical Value with battery voltage of 12V )
Range | ON |
40Ω / 400Ω / 4000Ω | 42mA |
Earth V | 22mA |
General Specification
Safety Standard | IEC1010-1 overvoltage category III , IEC 61557 |
Display | 3 3/4 digit liquid crystal display with a max. reading of 3999. |
Timer (Auto power off) | about 3 minutes. |
Dimensions | 190(L) x 140(W) x 77(H)mm |
Weight | Approx. 800 (with battery) |
Power Source | Eight 1.5V 01t AA Size Battery. |
Over range Indication | ” OL ” will be shown on the LCD Penal when out of range measurement is made. |
Operating Temp. and Humidity | 0°C to 40°C (32°F to 104°F ) , below 80% RH |
Storage Temperature | -10°C to 60°C (14°F to 140°F ) |
Accessories | Test leads Auxiliary 1 set, Auxiliary earth spikes 4 pieces, Battery 8 piece, Carrying case, Neck strap, Manual. |
Accessories:
- Complete with Test leads Auxiliary 1 set, Auxiliary earth spikes 4 pieces, Battery 8 piece, Carrying case, Neck strap, Manual.
