Description
เครื่องวัดความสั่นสะเทือน บันทึกข้อมูล> Vibration Meter Datalogger > เครื่องวัดความสั่นสะเทือน Acceleration, Velocity and Displacement measurement.
Acceleration, Velocity and Displacement measurement ♦ High sensitivity probe head for accurate measurement

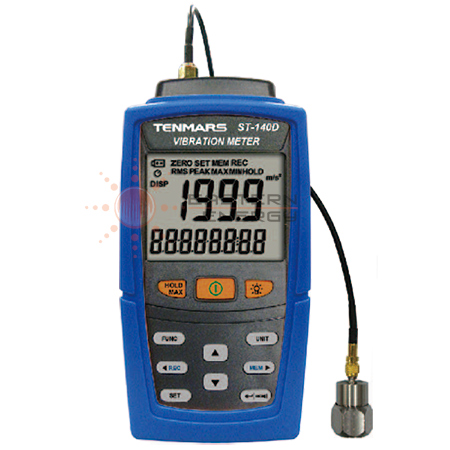

ST-140D : Vibration Meter/Datalogger ยี่ห้อ Tenmars, Taiwan
Vibration Meter with Displacement, Velocity and Acceleration Measurements
Features:
- Acceleration, Velocity and Displacement measurement.
- High sensitivity probe head for accurate measurement.
- Provides long and short probe head.
- Frequency LO range: 10Hz-1KHz meet ISO 2954 Measurement
- Hi range:10Hz-5KHz.
- Stores 99records manually.(ST-140)
- Data logger with 9999 records capacity.(ST-140D)
- USB interface.(ST-140D)
- Auto power off with disable function.
Specifications:
Measurement
frequency range |
Acceleration
|
10HZ~1KHZ(LO);1KHZ~5KHZ(HI)
|
Velocity
|
10HZ~1KHZ
|
|
Displacement
|
10HZ~1KHZ
|
|
Measurement
range |
Acceleration
|
0.1~199.9m/s2
|
Velocity
|
0.1~199.9mm/s
|
|
Displacement
|
0.001~1.999mm
|
|
Function
|
Acceleration/Velocity
|
RMS, Peak, Max Hold, Hold
|
Displacement
|
Peak-Peak, Max Hold, Hold
|
|
Accuracy
|
± (5% reading 2 digits),ref. 80/160Hz, 23°C,<80%RH
|
|
Dimension
|
156x73x35(LxWxH)
|
|
Power supply
|
1.5V AAA alkaline battery x 6
|
|
AC adapter
|
AC 100~240V to DC8~11V/0.5A
|
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า

Download ดาวน์โหลดไฟล์ข้อมูลสินค้า
