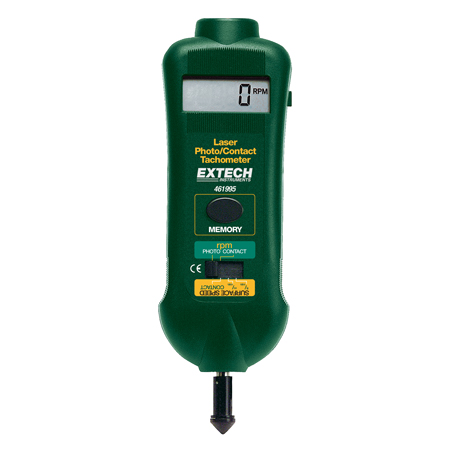

เครื่องวัดความเร็วรอบ Combination Contact/Laser Photo Tachometer รุ่น 461995

เครื่องวัดความเร็วรอบ Combination Contact/Laser Photo Tachometer, Photo mode 10 to 99,999, Contact mode 0.5 to 20,000 ยี่ห้อ Extech, USA

Description

เครื่องมืออุตสาหกรรม วิทยาศาสตร์ อุปกรณ์วิทยาศาสตร์ สิ่งแวดล้อม > Tachometer > เครื่องวัดความเร็วรอบ

เครื่องวัดความเร็วรอบ Combination Contact/Laser Photo Tachometer แบบแสงเลเซอร์/แบบสัมผัส

461995 : Combination Contact/Laser Photo Tachometer ยี่ห้อ Extech, USA

Combination Contact and Non-contact rpm measurements with laser

This Tachometer provides both contact (0. 5 to 19,999 RPM) and non-contact (10 to 99,999 RPM) RPM measurement functions for use in virtually all applications. Laser guided non-contact measurements up to 6.5 ft. (2 meter) away for added safety and convenience. Comes with wheels for linear surface speed (0.2 to 6560 ft. /minute; 0.05 to 1999.9 m/minute) or RPM measurements, 4 AA batteries, 23 in. (0.6 m) reflective tape, carrying case, and user manual.

Features:

  • Characters on display reverse direction depending on contact or photo mode
  • Uses a Laser for greater distance non-contact measurements up to 6.5ft (2m)
  • Memory/readings button holds last reading for 5 min and recalls min/max readings

For complete specs please download the product datasheet (not available for some accessories)


Specifications:
 Unit Photo mode Contact mode
Range (RPM) 461895
Range (RPM) 461995
   5 to 99,999
10 to 99,999
 0.5 to 20,000
0.5 to 20,000
 Accuracy  0.05% rdg +1 digit
 Sampling Time  1 Sec > 60rpm  1 Sec > 6rpm
 Surface Speed
 0.2 to 6560ft/min
 0.05 to 1999.9m/min
 Resolution
 0.1rpm (< 1,000 rpm)
 1rpm (>1000rpm)
 Power  4 AA batteries
 Dimensions  8.5 x 2.6 x 1.5”(215 x 65 x 38 mm)
 Weight  10.6 oz (300g)
Additional Features (461995): • Narrow beam Laser photo tachometer for accurate non-contact RPM measurements
• Measurements from up to 6.5ft from the target for improved safety and accessibility

 CE NIST warranty12
Ordering Information:
461895………………….Combination Contact/Photo Tachometer
461895-NIST………..461895 with NIST certificate
461995…………………Laser Photo/Contact Tachometer
461995-NIST………..461995 with NIST certificate
461937…………………Spare Reflective Tape (10pk, 23″ each roll)
461990………………..Set of Spare Contact Wheels (2 sets of 3)
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า


measuring instruments

  Download ดาวน์โหลดไฟล์ข้อมูลสินค้า
