เครื่องทดสอบความต้านทานฉนวน High voltage insulation tester

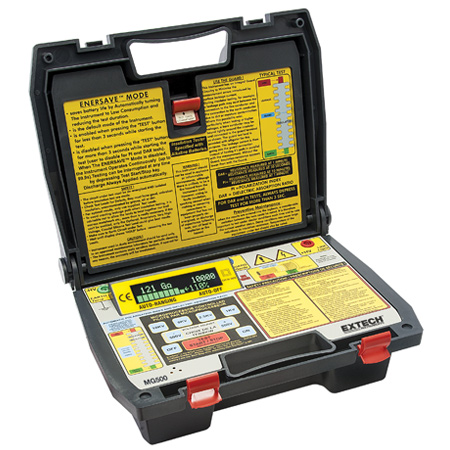

MG500: Digital High Voltage Insulation Tester ยี่ห้อ Extech, USA

Tests voltage up to 10kV and measures Insulation Resistance to 500GOhm

The MG500 is a digital high voltage insulation tester that tests voltage up to 10kV and measures insulation resistance to 500GOhm. The MG500 has a CAT III 300 Volt safety rating. This product is complete with a year warranty, built-in heavy duty carrying case with cover, test leads, alligator clips, and 8 x C batteries.

Features:

High test voltages up to 10kV with Insulation Resistance to 500GOhm
Polarization Index (PI) measurement
Dielectric Absorption Ratio (DAR) measurement
EnerSave™ limits test duration to 10 seconds to save energy
Complete with built-in heavy duty carrying case with cover, test leads, alligator clips, and 8 x C batteries

For complete specs please download the product datasheet (not available for some accessories)

Specification:

Insulation Resistance	800kΩ to 500GΩ ( Autoranging )
Resolution	1kΩ
Basic Accuracy	±5%
Insulation Test Voltages	500VDC to 10kVDC (adjustable in 500V steps)
Preset Buttons	1kV, 2.5kV, 5kV, 10kV
Polarization Index	Yes
Dielectric Absorption Ratio	Yes
Voltage Output Warning	Yes
Automatic Discharge	Ye s
Power	8 x C batteries
Dimensions	13×10.2×6.3″ (330x260x160mm)
Weight	7.9lbs (3.6kg)
