เครื่องบันทึกแสงอาทิตย์ Solar Power Meter Datalogging รุ่น TES-1333R

฿9,500.00 ฿8,500.00

***NEW VERSION*** เครื่องวัดพลังงานแสงอาทิตย์ Datalogging Solar Power Meter เชื่อมต่อผ่านสาย RS-232 ยี่ห้อ TES, Taiwan

Description

เครื่องวัดและบันทึกค่าแสงอาทิตย์ Datalogger Solar Power Meter > พลังงานแสงอาทิตย์ วัดความเข้มแสงอาทิตย์ > เครื่องวัดกำลังงานแสงอาทิตย์ เครื่องวัดกำลัง แสงอาทิตย์ Solar Power Meter

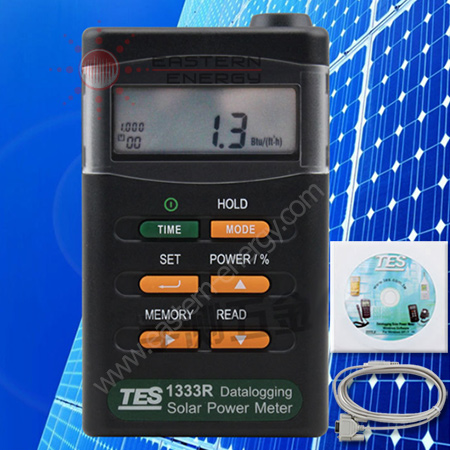

TES-1333R : Datalogger Solar Power Meter, RS232 interface to PC.

ยี่ห้อ TES, Taiwan ***NEW VERSION***

TES-1333R :เครื่องวัดกำลัง แสงอาทิตย์ Solar Power Meter Solar Power Meter > Sun Meter > เครื่องวัดแสงอาทิตย์ (Sunlight) กำลังของแสงดวงอาทิตย์

The digital solar power meter is a precision instrument used to measure solar radiation in the field. It is fully cosine corrected for the angular incidence of solar. the solar power meter is compact, rugged and easy to operate. the solar sensitive component used in the meter is a very stable, long-life silicon photovoltaic detector.

Features:

  • 4 digit LCD reding
  • Wide spectral range.
  • Excellent long term stability.
  • Cosine corrected.
  • Automatic transmission measurements.
  • Select either power or transmission.
  • Solar energy power or transmission.
  • Current time setting function.
  • User calibration factor setting function.
  • End-mount light sensor.
  • Select either W/m2 or Btu / (ft2x h) units
  • Data Hold / MAX / AVG modes.
  • Manual Data Memory Capacity (99 sets.)
  • Auto Data memory Capacity (43000 set.)
  • RS232 interface to PC. (TES-1333R)
Specifications:
 Display  3-1/2 digits.Max.indication1999
 Range  2000W/m2 、634Btu/(ft2 x h)
 Resolution  0.1W/m2、0.1Btu/(ft2 x h)
 Spectral response  400-1000nm
 Accuracy  Typically within ± 10W/m2[ ±3 Btu / (ft2*h) ] or ±5% , whichever is greater in sunlight;
Additional temperature induced error ±0.38W/m2 / ℃ [ ±0.12 Btu / (ft2*h)/ ℃] from 25℃
 Angular accuracy  Cosine corrected <5% for angles <60 °
 Drift  <±2% / per year
 Calibration  User recalibration available
 Over-input  Display shows” Over Range
 Sampling Time  Approx. 0.4 second
 Manu data memory and read  99 sets
 Auto data memory  43000 sets (TES-1333R)
 Battery  4pcs size AAA
 Battery Life  Approx. 100 hours
 Operating temp and humidity  0 ℃ to 50 ℃below 80%RH
 Storage temp and Humidity  -10 ℃ to 60 ℃ below 70% RH
 Weight  Approx. 165g
 Dimension  111(L)*64(W)*34(H)mm
 Accessories  Carrying Case, Operation Manual, 4 pcs size AAA, RS-232 cable (for TES-1333R), CD software (For TES-1333R)



Applications:

  • Meteorology
  • agriculture
  • solar radiation measurement
  • solar power research
  • physics and optical laboratories
  • solar transmission measurement
  • identify high performance windows

Accessories:

  • TES-1333R, Instruction manual, battery, Tripod mounted screw, CD software, RS232 cable
CE    TES TES-1333R: Datalogger Solar Power Meter เครื่องบันทึกแสงอาทิตย์ บันทึกพลังงานแสงอาทิตย์ Datalogging Solar Power Meter รุ่น TES-1333R
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
