Description
เครื่องวัดคลื่นแม่เหล็กไฟฟ้า ( Electro Magnetic Field Meter, EMF Meter )
TM-190 : Multi-Field EMF Meter ยี่ห้อ Tenmars, Taiwan
Measures Magnetic Field, Electric Field and Radio Frequency Strength
เครื่องวัดคลื่นแม่เหล็กไฟฟ้า 3 in 1 วัดค่า Electromagnetic Field 3 Axis, AC Electric Field และ RF Strength Field with Alarm

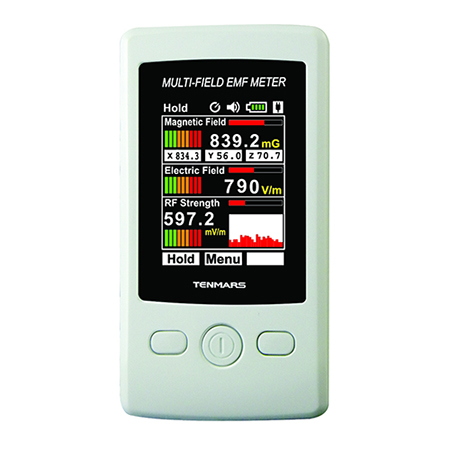

The TM-190 is a convenient 3-in-1 EMF meter which simultaneously measures and displays Magnetic Field, Electric Field and Radio Frequency Strength. Ergonomic pocket-sized design with an easy-to-navigate menu. Large vivid color TFT display shows digital readings, bargraphs, and trending graph. Magnetic Field, Electric Field, and Radio Frequency (RF) Strength merasurements. Store up to 20 RF historical records. Data Hold and Auto Power Off with disable feature. Complete with 3 AAA batteries and carrying case.

เครื่องตรวจจับรังสีแม่เหล็กไฟฟ้า EMF Meter
TM-190 เป็นเครื่องวัดรังสีแม่เหล็กไฟฟ้า EMF แบบ 3-in-1 ที่สะดวกซึ่งวัดและแสดงสนามแม่เหล็กสนามไฟฟ้าและความแรงของความถี่วิทยุในเวลาเดียวกัน การออกแบบตามหลักสรีรศาสตร์ขนาดพกพา พร้อมเมนูใช้งานง่าย จอแสดงผล TFT สีสดใสขนาดใหญ่ แสดงการอ่านดิจิตอลกราฟราคาและกราฟแนวโน้ม การวัดความแรงของสนามแม่เหล็กสนามไฟฟ้าและความถี่วิทยุ (RF) เก็บบันทึกประวัติ RF ได้มากถึง 20 รายการ การเก็บข้อมูล และปิดอัตโนมัติด้วยคุณสมบัติปิดการใช้งาน มาพร้อม แบตเตอรี่ขนด AAA x 3 ก้อน และกระเป๋าหิ้ว
เครื่องตรวจจับรังสีแม่เหล็กไฟฟ้า EMF Meter
Features:
Features:
- 4 digits, 2.4 inches color TFT LCD.
- 3 measurements in one meter:
- Electromagnetic Field ( 3 – axis ).
- Electric Field.
- RF Strength Field.
- Data Hold (HOLD).
- Audible alarm
- Store up to 20 RF historical records
- Language Selection (choose your language):
- English; Traditional Chinese; Simplified Chinese; Japanese; Spanish.
- Complete with 3 AAA batteries, User’s Manual and Carrying case.
For complete specs please download the product datasheet (not available for some accessories)
Specifications:
Unit | Electromagnetic field 3 Axis | Electric field | RF Strenght field |
Sensor type: | Low Frequency Magnetic Fields Triple axis (X, Y, Z) |
LF Electric Fields | RF Strength |
Range: | 0.02~2000mG, 0.02 to 200µT | 50V/m to 2000V/m. | 0.02µW/m² ~ 554mW/m² |
Resolution: | 0.01/0.1/1 mG or 0.01/0.1/1 µT |
1 V/m | 0.01μW / m², 0.1μA / m, 0.1mV/m,0.001μW/cm ², 1dB |
Frequency: | 50/60 Hz | 50/60Hz | 50MHz to 3.5GHz |
Accuracy: | ±(15%+100dgt) | ± (7%+50dgt) | ± 2dB at 2.45GHz |
Audible key tone alarm: | buzzer | ||
Sample rate: | 6 seconds per time. | ||
Battery: | 1.5V AAA alkaline battery*3. | ||
Batterylife: | approximate 8 hours. | ||
Dimensions: | 115(L) x 60(W) x 21(H) mm. | ||
Weight: | about 120g. |
Remarks: TM-190 can be powered via USB mini-B (5 pin) connection, user’s external power supply (voltage DC 4.8 ~ 5.2V; current ≧500mA).
Convenient 3-in-1 EMF meter simultaneously measures and displays Magnetic Field, Electric Field, and Radio Frequency Strength. Ergonomic pocket-sized design with an easy-to-navigate menu. Large vivid color TFT display shows digital readings, bargraphs, and trending graph.Applications: – Home appliances – Power lines, – Electrical appliances – Industrial devices – Mobile/cell phones – Base stations |
Accessories:
- 3 AAA batteries, User’s Manual and Carrying case.
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า

เครื่องตรวจจับรังสีแม่เหล็กไฟฟ้า EMF Meter
