Description
General Industrial Instrument, General Scientific Instrument เครื่องมือวัด – เครื่องวัดอุณหภูมิ Type K รุ่น AZ 88599
2 แชลแนล K type Thermocouple & 2 แชลแนล Thermistor Recorder with Relay
เครื่องวัดอุณหภูมิ บันทึกข้อมูลผ่าน SD Card 4 Channel Type K Input Thermometer & Thermistor
88599 : 4 channel K thermometer & Thermistor SD card data logger ยี่ห้อ AZ-Instrument, Taiwan

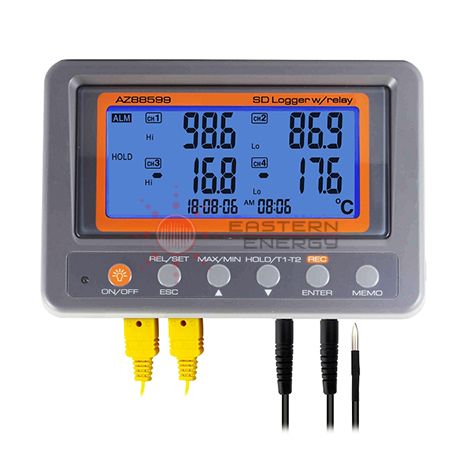

88599 AZ 4 Channel K Thermocouple & Thermistor SD Card Thermometer Monitor with Relay:The 88599 AZ Temperature Recorder can measure and monitor the temperature from 4 different origins, including 2 K type thermocouple channels, and 2 Thermistor channels. User could use the 9V DC and its wall mount function for the long time recording works, or 4 PCS AA batteries for the convenient monitoring/loggind. The temperature value would be saved as the TXT format into the SD card, and then user could proceed with their following analysis by the Excel or other software. It could be operated easily in different PC operation systems. The SD card could be inserted and taken off easily.
The 88599 AZ 4 Channel SD Card Thermometer with K Thermocouple & Thermistor Sensor has a super big LCD which could be met with the temperature monitor and recording purpose for the Construction, Logistic related business and other Industry. It also has the back light function, which could let user to operate the data logger in the dark area easily.
The 88599 AZ 4 Channel K Thermocouple Meter & Thermistor SD Card Data Logger has the relay function, which could transfer the temperature signal to the other equipment (ex: GSM Alarm) or control the following related instruments.
The 88599 AZ 4 Channel K Thermocouple & Thermistor Instruments SD Card Data Logger was being designed and manufactured by AZ Instrument, a well experienced
manufacturer for Environmental Measuring Instrument.
Features:
- Super big LCD portable / wall-mount SD card logger
- Measure and Log 4 temperature at once by using quick response K thermocouple and NTC Thermistor probes
- Programmable independent high/low alarm of each channel with relay output
- One button press operation to display T1-T2
- Display temperature change from baseline
- Temperature offset function for adjustment purpose
- Relay to trigger external alarm system on (ex: GSM message)
- Hold function, Max/Min, offset, Low battery indicator
- Beeper and LED alarm are both available
- Programmable temperature High/Low alarm limit
- Over-range indication with error messages
- Blue back light function for dark area operation
- 12/24 hour time format selective
- Real time display (YEAR-MON-DATE, Hour-Min)
- 20 mins auto power off to save power
- Temperature units °C/°F selective
| K Temperature Range | -200~1370°C, -328~2498°F |
| K Temperature Resolution | 0.1°C, 0.1°F |
| K temperature Accuracy | ±(0.3% rdg+1°C) (under 18~28°C ambient Temperature) |
| Thermistor Temperature Range | -30~70°C, -22~158°F |
| Thermistor Temperature Resolution | 0.1°C, 0.1°F |
| Thermistor Temperature Accuracy | 0.5°C |
| Relay | A normal open contact Contact rating@resistive load: 1A 30VDC/0.5A, 125VAC |
| SD Card | SD Card or SDHC card (MMC and SDXC cards are not compatible) |
| Sampling Rate | Programmable from 1 second up |
| LCD Size | 104(L) * 47(W) mm |
| Operating Temperature | 0~50°C |
| Operating RH% | Humidity <80% |
| Storage Temperature | -20~50C |
| Storage RH% | Humidity <90% |
| Battery | 4PCS AA Alkaline Batteries or 9V DC Adaptor |
| Meter Size | 152(L)* 100(W) * 39(H)mm |
| Weight | ~300g |
- 88599 Meter.
- SD Card 8GB.
- แบตเตอรี่ “AA” x 4pcs.
- 2 x Wire probe Type K probe.
- 2 x Thermistor Sensor Probes
- 4 x 1.5V “AA” Batteries
- Instruction Manual
- Plain Box
Optional Accessory:
- Temperature Thermistor Sensor Probe, 9V Adaptor
2. VZ87P6AZ2 : 2cm stainless probe, 200 cm cable
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
Download ดาวน์โหลดไฟล์ข้อมูลสินค้า
