Description
Digital Power Supply ดิจิตอลเพาเวอร์ซัพพลาย ขนาด 30V/3A

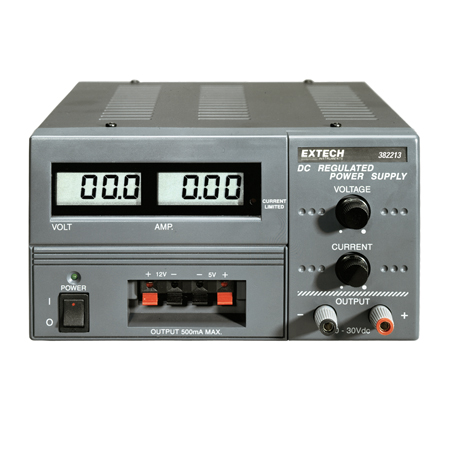

382213 : Digital Triple Output DC Power Supply ยี่ห้อ Extech, USA
Adjustable to 30V/3A with fixed 5V and 12V outputs
Ideal for a wide range of applications including bench testing, field service, hobby and telecommunication equipment, the solid state, compact Extech 382213 digital DC power supply delivers clean, reliable power while protecting itself and any device under test (DUT) from damage. It offers three choices of power output: adjustable 0-30-Volt, 0-3-Amp, plus fixed 5- and 12-Volt. Featuring a digital LCD display, the 382213 also includes overload and short circuit protection, constant voltage/current, easy snap terminals for 5- and 12-Volt outputs, and a current-limited front panel LED indicator. Complete with power cord.
Features:
- Adjustable Voltage and Current output
- Easy snap terminals for fixed 5V/0.5A and 12V/1A outputs
- Constant Voltage or Current
- Current limiting indicator
- Overload and short circuit protection
- Binding post terminals for variable supply
For complete specs please download the product datasheet (not available for some accessories)
Specifications:
Display | Digital (V&A),3 digit 0.1 res. LCD |
DC Voltage/Current Output | 0 to 30 Volts/ 0 to 3 Amps |
Ripple and Noise | <5mV |
Line/Load Regulation | <0.05%+10mV |
Fixed Output Voltage | 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max) |
Power | 110/220VAC 50/60Hz |
Dimensions/ Weight | 6 x 5.6 x 9.5″ (152 x 142 x 242)/ 11lbs. (5kg) |
Accessories:
• Complete with power cord
Download ดาวน์โหลดไฟล์ข้อมูลสินค้า
• Complete with power cord



Ordering Information:
382203…………..Analog DC Power Supply, 115/220 VAC
382203-NIST……Analog DC Power Supply, 115/220 VAC with Calibration Traceable to NIST.
382213…………..Digital DC Power Supply, 115/220 VAC
382213-NIST……Digital DC Power Supply, 115/220 VAC with Calibration Traceable to NIST.
382203…………..Analog DC Power Supply, 115/220 VAC
382203-NIST……Analog DC Power Supply, 115/220 VAC with Calibration Traceable to NIST.
382213…………..Digital DC Power Supply, 115/220 VAC
382213-NIST……Digital DC Power Supply, 115/220 VAC with Calibration Traceable to NIST.
