Description

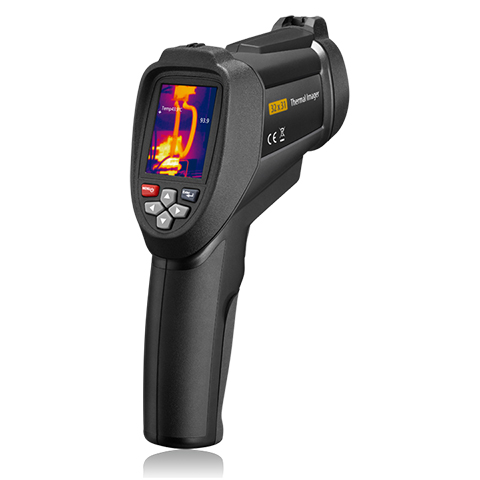

กล้องถ่ายภาพความร้อน CEM DT-9868 Thermal Imager
DT-9868: Performance InfraRed 32×31 pixels Imagers Thermometer ยี่ห้อ CEM
กล้องถ่ายภาพความร้อน Thermal Imager CEM DT-9868 กล้องถ่ายภาพความร้อน Thermal Imager
หน้าจอ LCD TFT 320×240 พิกเซล ขนาด 2.2 นิ้ว ช่วงการวัด -20℃ ถึง +300℃
Performance InfraRed 32×31 pixels Imagers Thermometer
DT-9868 is a Professional InfraRed 32×31 pixels Imager Thermometer with 2.2” color TFT LCD display; a microSD memory card for capturing images (BMP) for viewing on your PC; providing fast, easy and accurate readings for most surface
iRTP software
for InfraRed Thermometer
Meterbox iRTP smartview software provides a professional report with table and chart, details including data analysis, alarm indication, fault doubt share, inspector management, application scene, fast inspection, scene mode, equipment maintenance and quality inspection.
The smart choice; The default usage scene; Data analysis; Table and chart display; Alarm indication; Fault doubt share; Inspector management; Fast inspection; Scene mode; quipment maintenance; Quality inspection
for InfraRed Thermometer
Meterbox iRTP smartview software provides a professional report with table and chart, details including data analysis, alarm indication, fault doubt share, inspector management, application scene, fast inspection, scene mode, equipment maintenance and quality inspection.
The smart choice; The default usage scene; Data analysis; Table and chart display; Alarm indication; Fault doubt share; Inspector management; Fast inspection; Scene mode; quipment maintenance; Quality inspection
Features:
- 2.2″ TFT 320×240 Pixels color LCD display;
- IR temperature measurement with resolution 32×31 pixels;
- Image Capture Frequency 9Hz;
- Thermal Sensitivity (NETD) ≤150 mK;
- Hot Spot and Cold Spot Tracking;
- Visual Camera & Images Capture (BMP);
- MicroSD memory card;
- Date/time setup controls, Adjustable emissivity & trigger lock;
- Li-ion rechargeable battery;
- SB interface to smartphone / PC;
- Language selection: English, Chinese;
- Meterbox IRTP & cloud service;
- Size (H x W x D): 125mm x 58mm x 205mm
- Weight: 494g
Specifications:
| Imaging and optical data | |
| Thermal sensitivity (NETD) | 0.15℃ (0.27℉) @ 1Hz and 100℃ |
| Image frequency | 9Hz |
| Detector data | |
| Detector type | Uncooled hyper-thin pyroelectric ceramic |
| Spectral range | 6.5-14μm |
| IR resolution | 32×31 pixels |
| Display | 2.2″ TFT 320×240 pixels color LCD display |
| IR temperature measurement | |
| Object temperature range | -20℃ to +300℃（-4℉ to +572℉) |
| Accuracy | ±2% ±2℃ as tested |
| Spot | Hot spot and cold spot tracking |
| Emissivity adjustable | 0.10~1.0 adjustable |
| Micro SD memory card | MAX. support 8GB |
| Field of view | 38°x 38° |
| Color palettes | Hot metal/ironbow/rainbow/rainbow high contrast/grayscale |
| Image storage format | Standard BMP, including measurement data, on memory card>1000 pictures |
| Image storage format | Standard BMP, including measurement data, on memory card>1000 pictures |
 |
 |
The smart choice
|
 |
Accessories:
- User manual, USB Cable with CD software, 3.7v Li battery, AC Adapter, Tripod, Hard carrying case.
Infrared Thermal Image Camera (DT-9868)
