Description
Borescope Inspection Camera กล้องงู, Waterproof Video Borescope Inspection Camera
Borescopes กล้องส่องในท่อ, กล้องส่อง ในเครื่องยนต์, กล้องส่องภายใน, กล้องส่องในพื้นที่แคบ

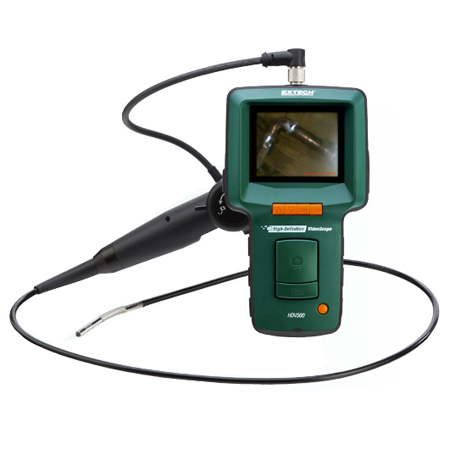

HDV540 : High-Definition Articulating VideoScope Kit ยี่ห้อ Extech, USA
6mm camera diameter, wired articulating handset and 3.5″ Color TFT LCD Monitor
The HDV540 is a light weight VideoScope which includes a wired handset and 6mm diameter camera with 240° articulating tip for best viewing angle. Easy one-hand operation of the articulating camera tip facilitates viewing in obstructed areas where standard camera tips cannot access. Images and videos are viewed on the large high resolution color display or external monitors and can be stored in SD memory card (included) or a USB flash drive. Featuring a glare free close up field of view, AV output for viewing images/video on a monitor, Record voice-over audio in video recording mode and memory storage of 20,000 images. Complete with HDV500 videoscope, handset with articulating probe, SD card, 3.7V rechargeable Li-Polymer battery, 100/240V Universal AC adaptor and multiple plug types (US, EU, UK, AUS), USB and AV cables, and hard carrying case.
กล้องส่องในท่อ HDV540
Features:
- Includes wired handset with nondetachable 6mm flexible probe (1m) with macro lens
- Articulating probe tip adjusts up to 240° viewing angle
- 3.5″ (89mm) color LCD TFT with high definition 320 x 240 pixel resolution
- Compact, high-resolution water-proof (IP67)camera probe
- Camera head with four built-in bright LED lamps and dimmer to illuminate viewed object
- Glare-free close-up field of view
- Store more than 20,000 images on 4GB SD card
- AV output for viewing images/video on a monitor
- Video and images can be transferred to a PC via the SD card or USB output
- Record voice-over audio in video recording mode
- Complete with HDV500 videoscope, handset with articulating probe, SD card, 3.7V rechargeable battery, Universal AC adaptor and multi-plugs (US, EU, UK, AUS), USB and AV cables and hard carrying case
For complete specs please download the product datasheet (not available for some accessories)
กล้องส่องในท่อ HDV540
Specifications:
| Camera | |
| Focus distance | 0.8 to 2.36″ (2 to 6cm) |
| Field of View | 57° |
| Shaft diameter | 0.24″ (6mm) |
| Working length | 39″ (1m) |
| Camera Tip bend radius | 240° (120° left, 120° right) |
| Borescope | |
| LCD Color TFT Display/ Pixels | 3.5″ (8.9cm) size/ 320 x 240 pixel resolution |
| Frame Rate | 30 fps frame rate (NTSC & PAL) |
| SD Card | 4GB SD memory card included (supports up to 32GB SD storage) |
| Operating | up to 6 hours AVI video |
| Dimensions | Meter w/battery: 8.3×4.3×1.6″ (21cmx11cmx4cm) |
| Weight | 14.1oz (400g) |
กล้องส่องในท่อ EXTECH HDV540
 |
Light weight VideoScope includes a wired handset and 6mm diameter camera with 240° articulating tip for best viewing angle. Easy one-hand operation of the articulating camera tip facilitates viewing in obstructed areas where standard camera tips cannot access. Images and videos are viewed on the large high resolution color display or external monitors and can be stored in SD memory card (included) or a USB flash drive. |
กล้องส่องในท่อ EXTECH HDV540
Accessories:
-
Complete with HDV500 videoscope, handset with articulating probe, SD card, 3.7V rechargeable battery, Universal AC adaptor and multi-plugs (US, EU, UK, AUS), USB and AV cables and hard carrying case.
กล้องส่องในท่อ EXTECH HDV540
กล้องส่องในท่อ EXTECH HDV540
Ordering Information:
HDV540…………HD Articulating VideoScope Kit
HDV5-5CAM-1AFM…..6mm Articulating VideoScope Camera Head with Macro lens and 1m Flexible Cable
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
Download ดาวน์โหลดไฟล์ข้อมูลสินค้ากล้องส่องในท่อ EXTECH HDV540
