Description

เมกะโอห์มมิเตอร์ Megohmmeter > เครื่องวัดความเป็นฉนวน Insulation Resistance Meter

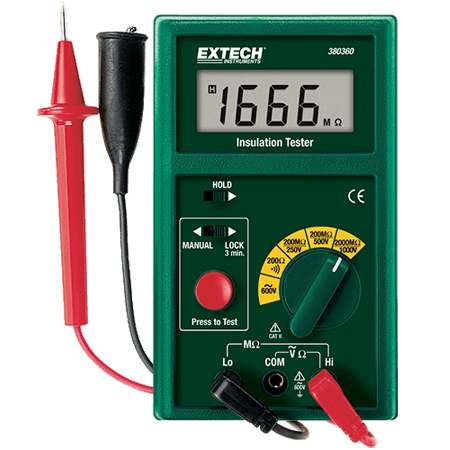

380360: Digital Megohmmeter ยี่ห้อ Extech, USA

1000V digital tester with automatic 3 minute test

The 380360 is a 1000V digital tester with an automatic 3 minute test. Three test voltages of 250V, 500V and 1000V. Insulation Resistance to 2000MΩ. Automatic discharge when safety “Press to Test” button is released. Complete with 6 x AA batteries, heavy duty 2.5 ft. (0.8m) test leads, alligator clip, large probe and case with neck strap.

Features:

Three test voltages of 250V, 500V and 1000V
Insulation Resistance to 2000MOhm
Safety Power Lock enables “hands free” operation for 3 minute test
Automatic discharge when safety “Press to Test” button is released
Continuity measurements to 200Ohm and Voltage to 600VAC

For complete specs please download the product datasheet (not available for some accessories)

Specification:

Insulation Resistance	200MΩ, 2000MΩ
Basic Accuracy	<1000MΩ (3%rdg+5d), >1000MΩ (5%rdg+5d)
Low Resistance Test	200Ω
Basic Accuracy	1%rdg
Insulation Test Voltages	250V, 500V, 1000V
AC Voltage Test	600V
Basic Accuracy	0.8% rdg +3d
Power source	6 x AA batteries
Dimensions	3.8 x 6.3 x 2.3” (97 x 160 x 58mm)
Weight	13oz (369g)
