Particle Counter เครื่องวัดปริมาณฝุ่น เครื่องวัดฝุ่น > เครื่องวัดปริมาณฝุ่น รุ่น VPC300

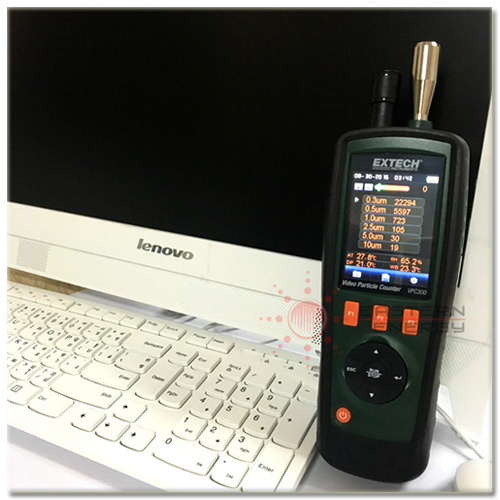

VPC300 : Video Particle Counter with built-in Camera ยี่ห้อ Extech, USA
Measure up to 6 Channels of Particle Sizes plus Air Temperature and Relative Humidity
เครื่องวัดปริมาณฝุ่นละอองในอากาศ เหมาะสำหรับตรวจวัดในห้อง clean room/ Indoor Use พร้อมฟังก์ชั่นวัดอุณหภูมิ/ความชื้น/Dew point และ wet Bulb

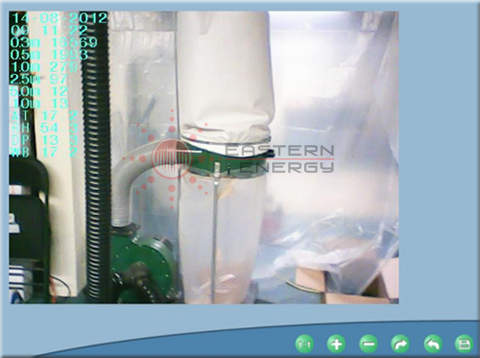

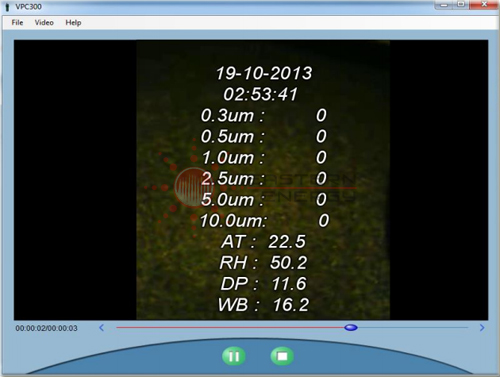

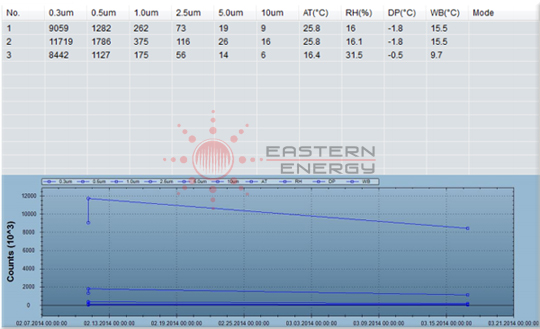

Particle Counter with unique built-in camera for capturing videos and photos that are stored onto internal memory or a microSD card. The VPC300 can measure up to 6 channels of particle sizes plus Air Temperature and Relative Humidity. Use the included software to generate reports with videos, photos, and data points.
Environments Prone to Airborne Particulates:
- Diesel vehicle transportation & service depots
- Power generation (fossil fuel burning)
- Traffic-related emissions
- Charcoal-based heating/cooking
- Cement manufacturing, mining, & stone crushing
- Metallurgy processes (melting, pouring, torch-cutting)
- Agroindustrial (flour milling & agricultural field burning)
- Simultaneously measure and display 6 channels of particle sizes (down to 0.3 µm), Air Temperature, Humidity, Dew Point and Wet Bulb
- 2.8″ TFT Color LCD display
- Built-in 320×240-pixel camera takes videos (3GP) and photo images (JPEG) and records them in internal 74MB memory
- Store 5000 records (date, time, counts, humidity, temperature, sample volumes, and location label) and 20 minutes of video
- Selectable sample time, count data, and programmable delay
- Max, Min, DIF, AVG record, Date/time setup controls, Auto Power Off
- Tripod mount for continuous recording
- Mini-USB port connection
- microSD card slot in battery compartment (memory card not included; max size 8GB)
- Complete with NIST-traceable calibration certificate, Universal AC Adapter/Charger with multiple plugs, USB cable, PC software, tripod, filter, 7.4V NiMH battery and hard case
|
Particle Counter
|
|
|
Channel
|
0.3, 0.5, 1.0, 2.5, 5.0, 10μm
|
|
Flow Rate
|
0.1ft3(2.83L/min) controlled by internal pump
|
|
Count Modes
|
Cumulative, Differential, Concentration
|
|
Counting Effeciency
|
50% @ 0.3μm; 100% for particles>0.45
|
|
Coincidence Loss
|
5% @ 2,000,000 particles per ft3
|
|
Air Temperature Measure
|
|
|
Air Temperature
|
-14 to 140ºF (-25 to 60ºC); Accuracy: ±2ºF/1ºC
|
|
Relative Humidity
|
0 to 100%RH; Accuracy:±3%RH (40% to 60%RH)
|
|
Dew Point/ Wet Bulb
|
32 to 122ºF (0 to 50ºC)
|
|
Dimensions
|
9.4 x 3 x 2.2″ (240 x 75 x 57mm)
|
| Weight | 1.26lbs (570g) |
 |
Particle Counter with unique built-in camera for capturing videos and photos that are stored onto internal memory or a microSD™ card. The VPC300 can measure up to 6 channels of particle sizes plus Air Temperature and Relative Humidity. Use the included software to generate reports with videos, photos, and data points.
Environments Prone to Airborne Particulates: |
Accessories:
-
NIST-traceable calibration certificate, Universal AC Adapter/Charger with multiple plugs, USB cable, PC software, tripod, filter, 7.4V NiMH battery and hard case
