Description

DC Power Supply เพาเวอร์ซัพพลาย ขนาด 30V/1A

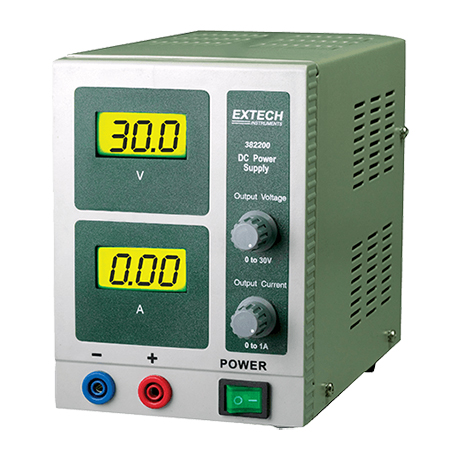

382200 : 30V/1A Single Output DC Power Supply ยี่ห้อ Extech, USA

Constant Voltage/Current digital DC power supply with dual LCD

The 382200 is a DC power supply which provides an adjustable 0 to 30 Volts and 0 to 1 Amp output. Features dual backlit LCD display for current and voltage, short circuit and overload protection. Operates from 120VAC ±10%/60Hz power source. Banana plug outputs. Complete with power cord.

Features:

Constant voltage or current
Dual backlit LCD displays for voltage and current
Short circuit protection
Current limiting
High load/line regulation
Low noise/ripple
Banana plug output terminals

For complete specs please download the product datasheet (not available for some accessories)

Specifications:

Comparisons Model: เปรียบเทียบ รุ่น	รุ่น 382200	รุ่น 382202
Display	Dual LCD
Display Accuracy (V, A)	±(1.5%rdg); ±(2%rdg)
Voltage Output, DC	30.0 Volts	18.0 Volts
Current Output, DC	0 – 1.00 Amp	0 – 3.00 Amps
Ripple and Noise	<0.5mV/<3mA
Line Regulation	< 0.01% + 3mV/< 0.2% + 3mA
Load Regulation	< 0.01% + 2mV/< 0.2% + 3mA
Power	115V/230V; 50/60Hz
Dimensions (WxHxD)	9.4 x 4.25 x 6″ (240 x 108 x 154mm)
Weight	4.4lbs. (2 kg)	6.6lbs. (3 kg)
