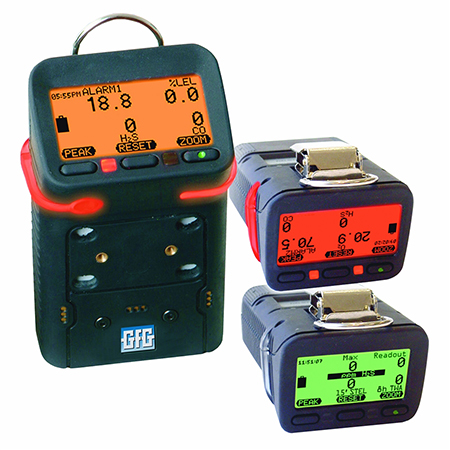

4-Gas Multi-gas Detector เครื่องวัดแก็ส CO,H2S,O2,LEL รุ่น G450

฿39,900.00

เครื่องตรวจจับแก็ส MULTI-GAS DETECTOR เครื่องตรวจจับแก็ส MULTI-GAS, GfG’s G450 is a compact and lightweight 4-gas detector that continuously measures CO, H2S, O2, LEL

รหัสสินค้า: G450 หมวดหมู่:

รายละเอียด

เครื่องตรวจจับแก็ส MULTI-GAS DETECTOR เครื่องตรวจจับแก็ส MULTI-GAS Detector รุ่น BX616 is a compact and lightweight 4-gas detector that continuously measures CO, H2S, O2 and combustibles in ambient air.

เครื่องตรวจวัดระดับออกซิเจนในอากาศ สำหรับงานตรวจสอบ ท่อแก๊ส สารไวไฟ ในโรงงาน โรงแรม โรงกลั่น ปิโตเคมี

G450: 4 in 1 Multi Gas Detector / O2, Hydrothion, CO, Combustible Gas Detectors, ประเทศ Germany

ยี่ห้อ GfG, Handheld O2, H2S, Co, LEL

เครื่องวัดแก็ส Gas Detector Oxygen H2S LEL CO

Watertight design GfG’s G450 is a compact and lightweight 4-gas detector that continuously measures CO, H2S, O2 and combustibles in ambient air. Its functional and watertight design (IP 67) incorporates an impact proof, rubberized housing to meet the toughest requirements of harsh environments.

Easy operation

The G450 simplifies gas detection with three menu-driven soft touch keys. A large graphic display provides accurate readings of all sensors at a glance.

Long life sensors

Factory-calibrated sensors ensure accurate readings. The extended sensor life reduces the cost of ownership. Sensors come with a three year warranty.

Operation time

Depending on the frequency and duration of alarms, the device will operate for up 25 hours. Only 4 hours are needed to fully recharge a unit equipped with the NiMH battery pack.

Perfect alarm system

An extremely loud audible alarm (103 dB at 30 cm) and bright, rotating alarm lights provide a reliable warning for gas hazards. Depending on the severity of the alarm, the display changes color from green to orange or red. The detector’s battery status and readiness for operation are continously monitored and displayed. Critical conditions will cause an immediate alarm. TLV, TWA and STEL values are continuously monitored. A vibrating alarm gives an extra degree of protection in loud environments.เครื่องวัดแก็ส Gas Detector Oxygen H2S LEL CO

Sampling pump

A detachable, self-powered pump is available for sampling confined spaces prior to entry. A low flow alarm is triggered in the event of insufficient flow to the monitor caused by blocked or bent tubing.

Datalogger

The datalogger records gas concentrations and alarms over a period of 50 hours. The data can be downloaded to a PC for viewing, storage and evaluation.

Easy reading

The large, high resolution topmounted display can be flipped 180o by pressing two buttons, allowing measurements to be easily read while the detector is being worn on a belt, pocket or lapel.

Interchangeable battery packs

Rechargeable NiMh or alkaline battery cartridges are easily interchangeable in the field, allowing the user to choose the best choice for their application. The intelligent electronics automatically recognize the type of battery pack installed, allowing the remaining power level to be displayed accurately.
Technical Data
Gases / warranty
Combustible gases (CH4)
Oxygen (O2)
Carbon monoxide (CO)
Hydrogen sulfide (H2S)
COSH (dual channel CO and H2S sensor)
Alarms

Audible– 103 dB at 30 cm
(restrictable to 95 dB)
Visual– Bright, rotating 360° LED’s, plus
heterochromatic backlit display
Vibrating alarm
Detection range and resolution

CH40-100% LEL 0.5%
CH40-5% volume 0.05%
O2 0-25% volume 0.1%
CO 0-300 ppm 1 ppm
H2S 0-100 ppm 1 ppm
COSH CO (0-300 ppm) and
H2S (0-100 ppm)
1 ppm
Casing
IP 67 (dust and highly water resistant)
Accessories
Datalogging kit
Self powered detachable sample pump (run-time up to 25 hours)
Spare battery cartridges (alkaline or rechargeable)
Rechargeable (NiMh) battery cartridge with optional LED flashlight
Expected sensor lifetime

CH43-5 years
O2 3 years
CO up to 4 years
H2S3 years
COSH3 years
Weight
0.62 pounds (280 g)
Dimensions
4.4×2.6×2 inches (66×11.8×50.8 mm) (HxWxD)
Rating and certifications (intrinsic safety)cCSAus
Class I, Division 1, Group A, B, C, and D
Hazardous locations Temp code T3CSA
Operational time
Up to 25 hours
Charge time
4 hours with rechargeable NiMh cartridge
Power source
2 “AA” batteries or
rechargeable NiMh battery cartridge
Temperature range
-4° to +122°F (-20 to 50°C) ambient
5 to 95% r.h. (non-condensing)
Accessories:
Accessories
CE  IP67
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า


measuring instruments Download Brochure ดาวโหลดโบร์ชัวร์สินค้า
Download   G450 Brochure ( 316kb )
