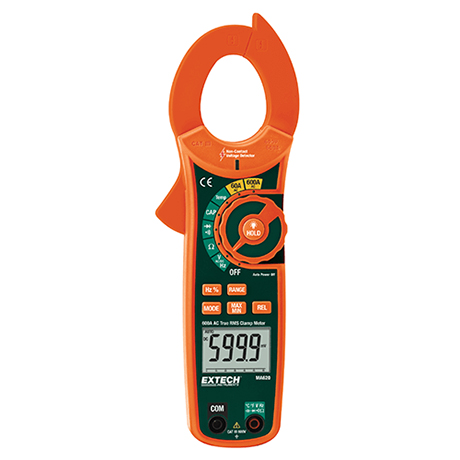

AC แคลมป์มิเตอร์ 600A AC True RMS Clamp Meter + NCV รุ่น MA620

AC แคลมป์มิเตอร์ 600A AC True RMS Clamp Meter + NCV with Built-In Non-Contact Voltage Detector ยี่ห้อ Extech, USA

SKU: EXTECH MA620 Category:

Description

แคลมป์มิเตอร์ > เครื่องวัดกระแสไฟฟ้า AC Clamp-on Meter > Clamp meter

MA620: 600A True RMS AC Clamp Meter + NCV ยี่ห้อ Extech, USA

True RMS AC Current Clamp Meter with Built-In Non-Contact Voltage Detector

Features:

  • AC Current, AC/DC Voltage, Resistance, Frequency, Capacitance, Temperature, Duty Cycle, Diode and Continuity
  • Integrated Non-Contact Voltage Detector with LED alert
  • 1.5” (40mm) jaw size for conductors up to 500MCM
  • 6000 count, backlit LCD display
  • Relative Mode for Capacitance Zero and Offset Adjustment
  • Data Hold, MIN/MAX, and Auto Power Off
  • Complete with test leads, general purpose Type K bead wire temperature probe, 9V battery and carrying case

For complete specs please download the product datasheet (not available for some accessories)

Specifications:
Unit
Range
Max. Resolution
Basic Accuracy
 (% readings+digits)
 Display counts
 6000
 AC Current (True RMS)
 60.00A, 600.0A
0.01A
 ±(2.8% + 8d)
 DC Current (MA640 Only)
 60.00A, 600.0A
0.01A
 ±(2.8% + 8d)
 AC Voltage (True RMS)
 6.000V, 60.00V, 600.0V
0.001V
 ±(1.8% + 8d)
 DC Voltage
 600.0mV, 6.000V, 60.00V, 600.0V
0.1mV
 ±(1.5% + 2d)
 Resistance
 600.0Ω, 6.000kΩ, 60.00kΩ,
 600.0kΩ, 6.000MΩ,  60.00MΩ
0.1Ω
 ±(1.0% + 4d)
 Frequency
 10Hz to 10kHz
0.01nF
 ±(3.0% + 5d)
 Capacitance
 40.00nF, 400.0nF, 4.000μF, 40.00μF,
 400.0μF, 4000μF
0.01nF
 ±(3.0% + 5d)
 Temperature
 -4 to 1400°F (-20 to 760°C)
0.1°
 ±(3% + 9°F/5°C)
 Duty Cycle  0.5 to 99.0% 0.1%  ±(1.2% + 2d)
 Diode
 Yes
 Continuity
 Yes
 Dimensions
 9.1x3x1.5″ (232x77x39mm)
 Weight
 9.6oz (271g)
CE ETL NIST CATIII 600V warranty12
Multimedia & Videos:
MA620/MA640 Showcase Video
(Requires Adobe Flash PlugIn)What is True RMS
(Requires Adobe Flash PlugIn)
