แคลมป์มิเตอร์ > เครื่องวัดกระแสไฟฟ้า Clamp-on Meter > AC Clamp meter

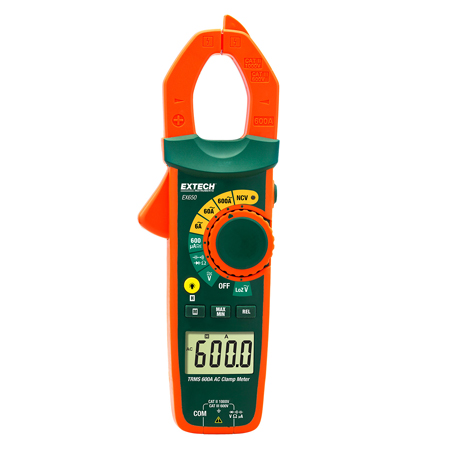

EX650: 600A True RMS AC Clamp Meter + NCV ยี่ห้อ Extech, USA

AC Clamp Meter with Non-Contact Voltage Detector and Low Impedance

The EX650 is a 600A True RMS AC Clamp meter. This clamp meter also measures AC/DC voltage, resistence, capacitance, continuity/diode test and has an NCV detector. The EX650 has a 1.18″ jaw size which accomodates conductors up to 350 MCM. This meter also features a 6000 count backlit LCD display, data hold, min/max, relative function, auto power off and a convenient LED worklight. Complete with test leads and 3 AAA batteries.

Features:

True RMS for accurate AC measurements
1.18″ (30mm) jaw size accomodates conductors up to 350MCM
6000 count backlit LCD display
Low Impedance (LoZ) prevents false reading caused by ghost voltages
Built-in non-contact voltage detector (NCV) with LED indicator
Built-in LED flashlight for working in dimly-lit areas
Functions include: NCV, AC/DC Voltage, AC Current, AC/DC micro Current, Resistance, Capacitance, Diode Test, Continuity
Data Hold, Min/Max, Relative function, Auto Power Off
Complete with test leads and 3 AAA batteries

For complete specs please download the product datasheet (not available for some accessories)

EX65x Series Common Features:

True RMS for accurate AC measurements
1.18″ (30mm) jaw size accommodates conductors up to 350MCM
LoZ prevents false readings caused by ghost voltages
μA function for HVAC flame rod Current measurements
Built-in Non-contact AC Voltage Detector (NCV) with LED indicator
6000 count backlit LCD display
Data Hold freezes the reading on the display
Min/Max captures highest and lowest readings
Relative function
Convenient LED worklight for viewing in dimly lit area
Auto Power Off conserves battery life

EX650 Feature	EX655 Additional Feature
9 Functions including AC Current Complete with test leads and 3 AAA batteries	12 Functions including AC/DC Current Frequency and Type K Temperature Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals Inrush mode captures current surges during motor startup DC ZERO mode LCD trending bargraph Complete with test leads, general purpose bead wire Temperature probe and 3 AAA batteries

Comparisons: Extech 65x Series Clam Meter

EX65x Series
Specifications	EX650	EX655
Specifications	Range (Max Resolution)	Range (Max Resolution)
AC Current	6A, 60A, 600A (0.001A)	60A, 600A (0.01A)
DC Current	—	60A ,600A (0.01A)
Basic accuracy	ACA: ±2.5% of rdg	ACA: ±2.5% of rdg DCA: ±2.5% of rdg
AC/DC μA Current	600μA (0.1μA)	600μA (0.1μA)
DC Voltage	1000V (0.1mV)	1000V (0.1mV)
AC Voltage	750V (1mV)	750V (1mV)
Basic accuracy	ACV: ±1.2% of rdg DCV: ±0.8% of rdg	ACV: ±1.2% of rdg DCV: ±0.8% of rdg
Non-Contact Voltage (NCV)	100 to 1000V	100 to 1000V
Resistance	60MΩ (0.1Ω)	60MΩ (0.1Ω)
Capacitance	60mF (0.01nF)	60mF (0.01nF)
Frequency	—	10Hz to 1MHz (0.01Hz)
Temperature	—	-40 to 1832°F (1°F) -40 to 1000°C (1°C)
Continuity/Diode Test	Yes	Yes
Dimensions	9x3x1.6″ (228x77x41mm)
Weight	9.4oz (265g)

EX650: 600A True RMS AC Clamp Meter + NCV

Choice of AC Current (EX650) or fully loaded advanced
AC/DC Current (EX655) model. Both meters feature
True RMS providing accurate readings when measuring
distorted or noisy waveforms and Low Impedance
(LoZ) mode to eliminate false readings caused by ghost
voltages. EX655 also features Low pass filter (LPF)
which attenuates high frequencies to reduce noise for
accurate readings and Inrush mode to capture current
surges during motor startup
