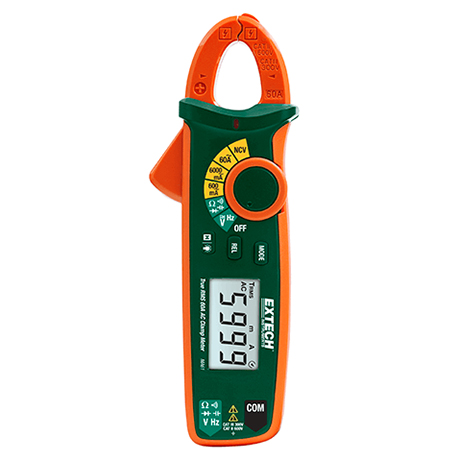

MA61: 60A True RMS AC Clamp Meter + NCV ยี่ห้อ Extech, USA
Compact Clamp Meter with Non-Contact Voltage Detector and Variable Frequency Control
The MA61 is an AC current clamp with NCV voltage detector and full overload protection. Manual ranging clamp meter with three Current ranges and AC/DC voltage to 600V. The 6000mA range allows for low current measurements that may be used in the automotive industry. Unique VFC (variable frequency control) mode helps troubleshoot and diagnose HVAC applications that are variable frequency driven. The MA61 also features resistance, capacitance, frequency, diode and continuity measurements as well as data hold low battery indicator, and auto power off functions. Complete with test leads, carrying case, and two AAA batteries.
Features:
- True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
- 0.7″ (17mm) jaw size allows measurements in tight locations
- 6000 count backlit LCD display
- Built-in non-contact voltage detector (NCV) with LED indicator
- Variable Frequency Control (VFC): Low pass filter for accurate measurements of variable frequency drive signals
- Functions include: NCV, AC/DC Voltage, AC Current, Resistance, Capacitance, Frequency, Diode Test, Continuity
- Full range overload protection
- Data Hold, Low Battery indicator, Auto Power Off
- Complete with test leads, 2 AAA batteries and carrying case
For complete specs please download the product datasheet (not available for some accessories)
Model MA61 — AC Current and Relative function
Model MA63 — AC/DC Current and DC Zero function
Comparisons: Extech MA6x Series Clam Meter
MA6x Series
|
||||
Specifications | MA61 | MA63 | ||
Range (Max Resolution)
|
Range (Max Resolution)
|
|||
AC Current
|
600mA, 6000mA, 60A (0.1mA)
|
600mA, 6000mA, 60A (0.1mA)
|
||
DC Current
|
—
|
6000mA, 60A (1mA)
|
||
Basic accuracy
|
ACA: ±2.0%
|
ACA: ±2.0%
DCA: ±2.0%
|
||
Non-Contact Voltage (NCV)
|
100 to 600V AC
|
100 to 600V AC
|
||
AC/DC Voltage
|
AC: 6V, 60V, 600V (1mV)
DC: 600mV, 6V, 60V, 600V (0.1mV)
|
AC: 6V, 60V, 600V (1mV)
DC: 600mV, 6V, 60V, 600V (0.1mV)
|
||
Basic accuracy
|
AC: ±0.8%
DC: ±0.7%
|
AC: ±0.8%
DC: ±0.7%
|
||
Resistance (Ω) | 600, 6k, 60k, 600k, 6M, 60M (0.1Ω) | 600, 6k, 60k, 600k, 6M, 60M (0.1Ω) | ||
Capacitance
|
6.2nF, 620μF, 62mF (1pF)
|
6.2nF, 620μF, 62mF (1pF)
|
||
Frequency
|
10Hz to 60kHz (0.001Hz)
|
10Hz to 60kHz (0.001Hz)
|
||
Continuity/Diode Test
|
Yes
|
Yes
|
||
Dimensions | 6.9×2.4×1.3″ (175x60x33.5mm) | |||
Weight | 6oz (170g) |
![]() ![]() |
Choice of AC Current or AC/DC Current model, both with high ±2% accuracy.
Manual ranging clamp meters with three Current ranges.
The 6000mA range allows for low current measurements that may be used in
the automotive industry. Unique VFC (variable frequency control) mode helps
troubleshoot and diagnose HVAC applications that are variable frequency driven.
|
