Description

แคลมป์มิเตอร์ > เครื่องวัดกระแสไฟฟ้า Clamp-on Meter > AC Clamp meter Digital Clamp Meter แคลมป์มิเตอร์ รุ่น UT201

UNI-T UT200 series Clamp Meter

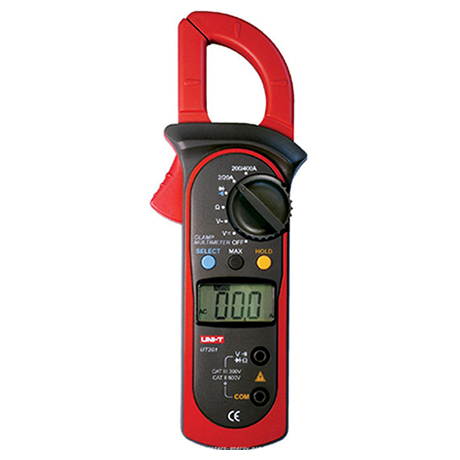

UT201: 400A AC Clamp-on Meter ยี่ห้อ UNI-T

Name: AC แคลมป์มิเตอร์ Digital Clamp Meter รุ่น UT201
SKU: UNI-T UT201
Price: 890.00 THB
Availability: InStock

UT200 Series Clamp Meter is kind of popular hot sale model of UNI-T series products. Because it is Auto range, very functional and high cost performance rate. It can measure large current and voltage up to 400 ampere/ 600 volt (UT204A can up to 600 ampere). Widely used in electric power engineering, experiment and wiring.

AC แคลมป์มิเตอร์ Digital Clamp Meter แคลมป์มิเตอร์ UNI-T UT201

Clamp meter and digital multimeter Wide range up to 400A/600V.
Measure AC, DC voltage and AC current
Higher accuracy than general 1999 counts.
Resistance, diode and continuity test
Max and data hold functions
Low battery display and sleep mode
35.6 x 18mm 1999 max. LCD
Complete with test leads, batteries, manual and carrying bag

Technical Specification:

DC Voltage (V)	min range	200mV
	max range	600V
	best accuracy	±0.8%
AC Voltage (V)	min range	2V
	max range	600V
	best accuracy	±1.2%
AC Current (A)	min range	2A
	max range	400A
	best accuracy	±1.5%
Resistance (Ohms)	min range	200Ω
	max range	20MΩ
	best accuracy	1.0%
Special Functions:
Autoranging:	Yes
Diode	Yes
Continuity Buzzer	Yes
Max Hold	Yes
Data Hold	Yes
Max. Display	1999

GENERAL CHARACTERISTICS:

Power	3V Battery (AAA) x 2
LCD Size	35.6 x 18mm
Product Colour	Red and Grey
Product Net Weight	220g
Product Size	210 x 75.6 x 30mm
Standard Accessories	Test Lead, Batteries, English Manual, Carrying Bag
Optional Accessories*	Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2)
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	40 pcs
Standard Carton Measurement	485 x 415 x 290 mm (0.058 CBM Per Standard Carton)
Standard Carton Gross Weight	15kg
