Description

AC แคลมป์มิเตอร์ : Compact AC Clamp Meter with Non-Contact Voltage Detector and Multimeter Functions

ดิจิตอล มัลติมิเตอร์ : Digital Multimeter มัลติมิเตอร์ > เครื่องมือวัด Multimeter มัลติมิเตอร์ 2 in 1 MultiFunction

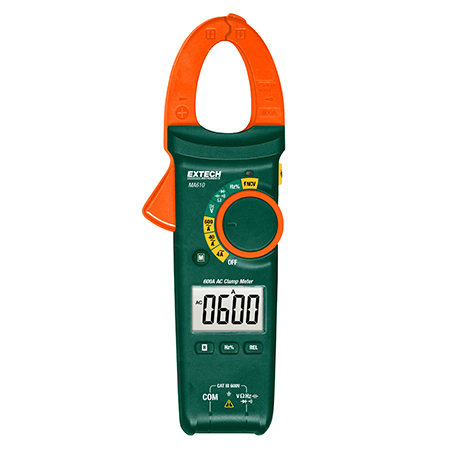

MA610: 600A AC Clamp Meter + NCV and Multimeter Functions ยี่ห้อ Extech, USA

Compact AC Clamp Meter with Non-Contact Voltage Detector and Multimeter Functions

The MA610 is a fully loaded clamp meter with multimeter functions including AC Current, AC/DC Voltage, Resistance, Frequency, and Capacitance. It also has a built-in non-contact voltage (NCV) detector to quickly check circuits and wires for live voltages. It’s a pocket-sized meter with 1.2″ (30mm) jaw that fits conductors up to 500MCM and is designed with a large backlit LCD display to view in dimly lit area.

Features:

Pocket-sized meter with 1.2″ (30mm) jaw size fits conductors up to 500MCM
Built-in Non-Contact Voltage (NCV) detector
MultiMeter functions include Resistance, Capacitance and Frequency
Relative Mode for Capacitance
Data Hold freezes reading on display
Auto Power Off with disable and Low Battery indication
Large backlit LCD display
Complete with test leads, three AAA batteries, and pouch

For complete specs please download the product datasheet (not available for some accessories)

Specifications:

Unit	Range	Max Resolution	Basic Accuracy
AC Current	600.0A	1mA	±2.0%
DC Voltage	600V	0.1mV	±0.8%
AC Voltage	600V	1mV	±1.2%
Non-Contact Voltage (NCV)	100 to 600V
Resistance	40MΩ	0.1Ω
Capacitance	100μF	0.01nF
Frequency	1MHz	0.01Hz
Diode/Continuity	Yes
Dimensions	9x3x1.6″ (228x77x41mm)
Weight	9.3oz (265g)


	The MA610 is a fully loaded clamp meter with multimeter functions including AC Current, AC/DC Voltage, Resistance, Frequency, and Capacitance. It also has a built-in non-contact voltage (NCV) detector to quickly check circuits and wires for live voltages.
