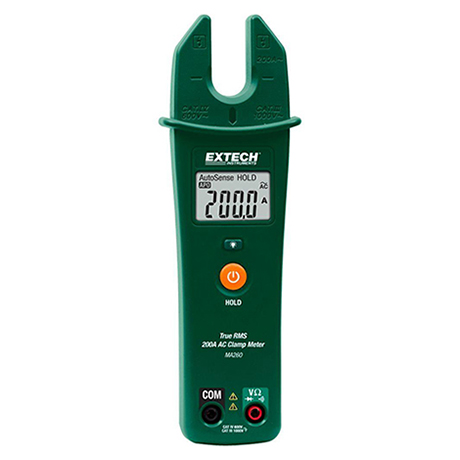

MA260: True RMS 200A AC Open Jaw Clamp Meter ยี่ห้อ Extech, USA

Compact AC Clamp Meter with Built-In NCV Detector

The MA260 is a True RMS 200A AC Open Jaw Clamp Meter. The MA260 has a built in NCV detector and can measure up to 200A in its 0.6 in. open jaw. True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms. Complete with test leads and two AAA batteries. UL listed with a CAT IV 600V safety rating.

Features:

Smart Auto Sensing technology enables the meter to recognize the input and automatically switch to the correct mode of operation
For AC Voltage, Auto Sense feature evaluates input signal and adjusts Input Impedance to eliminate effects of ghost voltages
0.6″ (16mm) open jaw size
True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
Built-in non-contact voltage detector with LED indicator
10,000 count backlit LCD display
Smart Data Hold freezes the reading on the display and automatically changes if a new reading is larger than 50 counts
Auto Power Off with disable
Slim housing construction with built-in test lead holders
Complete with test leads and two AAA batteries

For complete specs please download the product datasheet (not available for some accessories)

Specifications:

Unit	Range	Max Resolution	Basic Accuracy
AC Current	200A	0.1A	±3.0%
AC Voltage	1.3V to 1000V	0.1V	±0.9%
DC Voltage	2.1V to 1000V	0.1V	±0.3%
Non-contact Voltage (NCV)	80 to 1000V AC (50 to 60Hz)
Resistance (Ω)	0 to 10kΩ	1Ω	±0.9%
Input Impedance	6kΩ up to 30V; Increases to 420kΩ at 1000V
Diode	0.4 to 0.8V	0.1V	±1.0%
Continuity	Beeper (25Ω threshold)
Dimensions	7.6 x 2.1 x 1.2″ (193 x 54 x 31mm)
Weight	9.9oz (280g)

Ordering Information:
TL803………….General Purpose Test Leads
TL805………….Double Injected Test Leads
TL809………….Electronic Test Lead Kit
TL810………….Electrical Test Lead Kit
TL808-KIT…….Professional Test Lead Kit
TL900………….SafeSense™ CAT IV Fused Test Leads
TL831………….Master Electrical Test Lead Kit
TL833………….Industrial Test Lead Set
TL841………….Test Lead Kit
TL806………….Double Insulated Alligator Clips
TL807………….Insulated Alligator Clips
TL807C………..Insulated Alligator Clips
