แคลมป์มิเตอร์ เครื่องวัดกระแสไฟฟ้า True RMS AC Flex Clamp Meter > Clamp meter

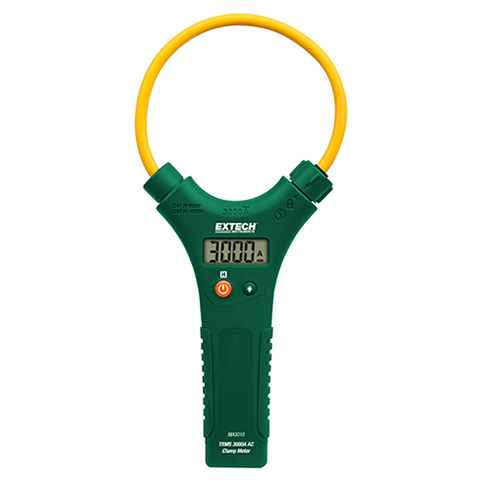

MA3010: 3000A True RMS AC Flex Clamp Meterยี่ห้อ Extech, USA

10″ Flexible Clamp Meter with LCD

The MA3010 is a 3000A True RMS AC Flex Clamp Meter. The MA3010 features a 10 inch flexible clamp with LCD monitor. The True RMS measurements are for accurate readings of noisy, distorted or non-sinusoidal waveforms. Complete with two AAA batteries. UL listed and CAT IV 600V safety rating.

Features:

Measure AC Current up to 3000A
True RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms
Flexible 10″ (25.4cm) clamp jaw easily wraps around bus bars and cable bundles
7.5mm cable diameter fits into tight spaces and around large conductors
Measures AC Current in three ranges
3000 count backlit LCD display
Over range and Low battery indicator
Auto Power Off with disable
Complete with two AAA batteries

For complete specs please download the product datasheet (not available for some accessories)

Specifications:

AC Current Ranges	0 to 30.00A, 30.00 to 300.0A, 300.0 to 3000A (autoranging)
Max Resolution	0.01A
Basic Accuracy	±(3%+5 digits)
Flex Cable Diameter	0.3″ (7.5mm)
Flex Cable Tip Diameter	0.51″ (13mm)
Dimensions	Model MA3010: 11 x 4.7 x 1″ (280 x 120 x 25mm); Model MA3018: 13.8 x 5.1 x 1″ (350 x 130 x 25mm)
Weight	Model MA3010: 6oz (170g); Model MA3018: 7.1oz (200g)
