Description

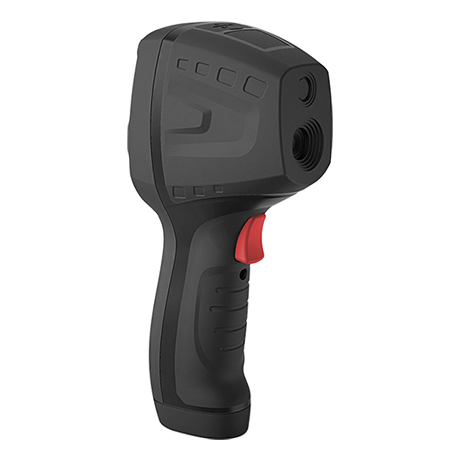

กล้องถ่ายภาพความร้อน Thermal Imager DT-867B CEM
DT-867B CEM : กล้องถ่ายภาพความร้อน Imager Thermometer ยี่ห้อ CEM
กล้องถ่ายภาพความร้อน Thermal Imager CEM DT-867B กล้องถ่ายภาพความร้อน Thermal Imager
DT-867B CEM กล้องถ่ายภาพความร้อน Thermal Imager แสดงผลบนหน้าจอ LCD สามารถเชื่อมต่อคอมพิวเตอร์ ผ่านสาย USB โอนข้อมูลภาพถ่ายไปยังเครื่องคอมพิวเตอร์ได้ CEM DT-867B Thermal Imager สามารถบันทึกภาพนิ่งได้มากกว่า 100 ภาพ ในหน่วยความจำภายใน การบันทึกภาพ สามารถโอนไปยัง PC ผ่านสาย USB ได้
CEM DT-867B are the Professional InfraRed 32×32 pixels Imager Thermometers with 2.0” color TFT LCD display, 32×32 pixels Imagers for capturing images(BMP) for viewing on your PC, providing fast, easy and accurate readings for most surface temperature measurements.
กล้องถ่ายภาพความร้อน DT-867B Thermal Imager เป็นเครื่องวัดอุณหภูมิ ขนาด 32×32 พิกเซลพร้อมจอแสดงผลสี TFT LCD 2.0 “, 32×32 พิกเซลสำหรับการถ่ายภาพ (BMP) สำหรับการดูภาพบนพีซีของคุณให้การอ่านที่รวดเร็ว ใช้งานง่ายและแม่นยำ สำหรับการวัดอุณหภูมิพื้นผิว
กล้องถ่ายภาพความร้อน CEM DT-867B
Features:
- อุณหภูมิของวัตถุที่วัดได้ ﹣20℃ to 600℃ ใช้ได้หลายสถานการณ์
- จอ TFT ขนาด 2 นิ้ว, 240 * 320 pixels
- High Resolution IR Images 32×32 pixels
- อัตราความเร็วความถี่ภาพ 7Hz
- Thermal Sensitivity(NETD)≤100mk
- Hot Spot and Cold Spot Tracking
- Visual Camera & Images Captuer(BMP)
- Date/time setup controls,Adjustable emissivity & trigger lock
- ออกแบบสวยงาม เล็ก และ น้ำหนักเบา พกพาไปกับเราได้ทุกที่ ทนต่อการตกหล่นได้ถึง 2 เมตร
- แจ้งเตือนด้วยเสียง
- USB interface to PC
- IP54 Waterproof Level
- Dimensions (H x W x D): 175 x 58 x 70 mm
- Weight: 450g
ตัวอย่างภาพถ่ายความร้อน | |
![]() |
![]() |
วิธีการใช้งาน:
- เล็งเครื่องมือไปที่วัตถุหรือพื้นที่ที่น่าสนใจ
- กดไกสั้นๆ เพื่อจับภาพที่จะยิง ภาพจะหยุดการเคลื่อนไหว
- หากไม่ต้องการบันทึกภาพปัจจุบัน กดที่ไกสั้นๆ อีกครั้ง ภาพจะถูกยกเลิกจากการควบคุม
- กดปุ่ม “SAVE” เพื่อทำการบันทึกภาพ
- หากภาพถูกจัดเก็บในหน่วยความจำจนเต็ม ภาพจะไม่มีการบันทึก
Specifications:
Model | CEM DT-867B |
Imaging and optical data | |
Thermal sensitivity (NETD) | 0.10°C(0.18°F)@1Hz and 100°C |
Image frequency | 7Hz |
Detector data | |
Detector Type | Uncooled hyper-thin pyroelectric ceramic |
Spectral range | 8-14µm |
IR resolution | 32×32 pixels |
Display | 2.0’’TFT 320×240 pixels color LCD display |
IR temperature Measurement | |
Object Temperature Range | –20°C to 600°C(﹣4°F to 1112°F) |
Accuracy | ±3°C(±5.4°F)or ±2% of reading |
Spotmeter | Center Spot |
Emissivity Correction | 0.01 ~ 1.0 Adjustable |
Field of View | 33° x 33° |
Color palettes | GREY/GREY IRON/IRON/RAINBOW |
Image storage format | Standard BMP,including measurement data,on drivce>100 pictures |
Storage of Images | |
Image Storage format | Bitmap(BMP),including measurement data. |
Power System | |
Battery | 3 x “AAA” |
Waterproof | |
Level | IP54 |
Environmental Data | |
Operting Temperature Range | ﹣20°C to 50°C( – 4°F to 122°F) |
Storage Temperature Range | ﹣40°C to 70°C( – 40°F to 158°F) |
Humidity(operating and storage) | 10% to 90% |
Drop test | 2m |
Physical data | |
Camera weight, incl. battery | 450g |
Camera size (H × W × D) | 175 x 58 x 70 mm |
Applications:
- Plant/General Maintenance
- HVAC/R
- Transportation/Automotive
- Cooling and Reheating
- Serving areas
- Food service Equipment
Accessories:
-
DT-867B Infrared camera, 3 x “AAA” Battery, USB cable, Carrying case and Gift box
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า

กล้องถ่ายภาพความร้อน CEM DT-867B
