Description

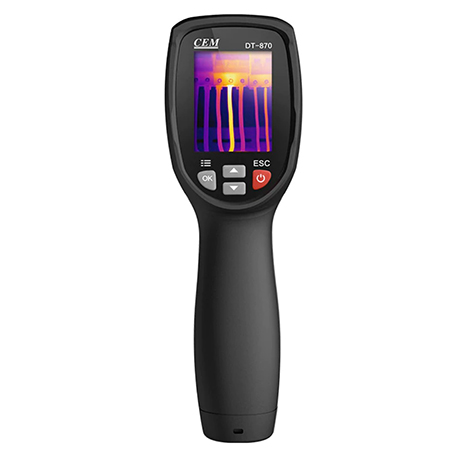

กล้องถ่ายภาพความร้อน High Performance Thermal Imager DT-870 CEM
DT-870 CEM : High Performance Thermal Imagers กล้องถ่ายภาพความร้อน ยี่ห้อ CEM
กล้องถ่ายภาพความร้อน Thermal Imager CEM DT-870 กล้องถ่ายภาพความร้อน Thermal Imager
DT-870 CEM กล้องถ่ายภาพความร้อน Thermal Imager แสดงผลบนหน้าจอ LCD สามารถเชื่อมต่อคอมพิวเตอร์ ผ่าน Bluetooth โอนข้อมูลภาพถ่ายไปยังเครื่องคอมพิวเตอร์ได้ CEM DT-870 Thermal Imager สามารถบันทึกภาพนิ่งได้ 20 ภาพ ในหน่วยความจำภายใน การบันทึกภาพ สามารถโอนไปยัง iOS, android และ PC ผ่านอุปกรณ์บลูทูธได้
CEM DT-870 Thermal Imagers are designed to make your work easier, more productive and effective. 80×80 resolution at 50 Hz for real-time capture.
Temperature range from -20°C to 380°C (-4°F to 716°F). Hot/Cold spot marker automatically finds the hottest and coldest spots. Lithium polymer battery & power supply, and USB cable. Bluetooth connectivity allows the Infrared Thermal Camera to send thermal pictures to mobile devices.
Temperature range from -20°C to 380°C (-4°F to 716°F). Hot/Cold spot marker automatically finds the hottest and coldest spots. Lithium polymer battery & power supply, and USB cable. Bluetooth connectivity allows the Infrared Thermal Camera to send thermal pictures to mobile devices.
กล้องถ่ายภาพความร้อน DT-870 Thermal Imager ออกแบบมาเพื่อการทำงานที่ง่ายขึ้น มีประสิทธิภาพและประสิทธิผลเพิ่มขึ้น ความละเอียด 80 x 80 ที่ 50 เฮริตซ์ สำหรับการจับภาพตามเวลาจริง มีย่านการวัด –20 องศาเซลเซียส ถึง 280 องศาเซลเซียส (-4 องศาฟาเรนไฮต์ ถึง 536 องศาฟาเรนไฮต์) แสดงจุดที่ร้อนที่สุดและเย็นที่สุดอัติโนมัติ แบตเตอรี่ลิเธี่ยมโพลีเมอร์ และ สามารถเชื่อมต่อกับคอมพิวเตอร์ผ่านพอร์ท USB. การเชื่อมต่อ Bluetooth ช่วยให้อินฟราเรดส่งภาพความร้อนไปยังอุปกรณ์มือถือได้ดี
กล้องถ่ายภาพความร้อน DT-870 CEM
Features:
- อุณหภูมิของวัตถุที่วัดได้ ﹣20℃ to 380℃ ใช้ได้หลายสถานการณ์
- จอขนาด 2 นิ้ว, 240 * 320 pixels
- High Resolution IR Images 80×80
- อัตราความเร็วความถี่ภาพ 50Hz
- รูปแบบการจัดเก็บภาพ (Bitmap (BMP), including measurement data)
- ออกแบบสวยงาม เล็ก และ น้ำหนักเบา พกพาไปกับเราได้ทุกที่ ทนต่อการตกหล่นได้ถึง 2 เมตร
- รองรับระบบปฏิบัติการ Android และ iOS เพื่อเชื่อมต่อบลูทูธกับกล้องถ่ายภาพและส่งถ่ายไปที่อุปกรณ์เคลื่อนที่
- แจ้งเตือนด้วยเสียง
- Dimensions (H x W x D): 175 x 58 x 70 mm
- Weight: 450g
ตัวอย่างภาพถ่ายความร้อน | |
![]() |
![]() |
วิธีการใช้งาน:
- เล็งเครื่องมือไปที่วัตถุหรือพื้นที่ที่น่าสนใจ
- กดไกสั้นๆ เพื่อจับภาพที่จะยิง ภาพจะหยุดการเคลื่อนไหว
- หากไม่ต้องการบันทึกภาพปัจจุบัน กดที่ไกสั้นๆ อีกครั้ง ภาพจะถูกยกเลิกจากการควบคุม
- กดปุ่ม “SAVE” เพื่อทำการบันทึกภาพ
- หากภาพถูกจัดเก็บในหน่วยความจำจนเต็ม ภาพจะไม่มีการบันทึก
กล้องถ่ายภาพความร้อน DT-870 CEM
Specifications:
Model | CEM DT-870 |
Imaging and optical data | |
Field of View (FOV) | 21°×21° |
Spatial resolution | 4.53mrad |
NETD | <0.1℃@30℃(80℉)/100mK |
Image frequency | 50Hz |
Focus mode | Focus free |
Focal Plane Array (FPA) / Spectral range | Uncooled microbolometer / 8–14 µm |
IR Resolution | 80×80 |
Image presentation | |
Display | 2″TFT LCD, 240×320 pixels |
Color palettes | Iron/Rainbow/Gray/Gray Inverted |
Measurement | |
Object Temperature Range | ﹣20℃ to 380℃(﹣4°F to 716°F) |
Accuracy | ﹢/﹣2℃(+/﹣3.6°F)or ﹢/﹣2% of reading |
Measurement Analysis | |
Spotmeter | Center Spot |
Automatic Hot/Cold Detection | Auto hot or cold markers |
Emissivity Correction | 8 pre-define level and Variable from 0.01 to 1.0 |
Storage of Images | |
Image Storage format | Bitmap(BMP),including measurement data. |
Data Communication Interfaces | |
Bluetooth | ![]() |
Power System | |
Battery | Li-ion battery, 4 hours operting time |
Input Voltage | DC 5V |
Charging System | In camera(AC adapter) |
Power Management | Automatic shutdown |
Environmental Data | |
Operting Temperature Range | ﹣20℃ to 50℃(﹣4°F to 122°F) |
Storage Temperature Range | ﹣40℃ to 70℃(﹣40°F to 158°F) |
Humidity(operating and storage) | 10% to 90% |
Drop test | 2m |
Physical data | |
Camera weight, incl. battery | 450g |
Camera size (H × W × D) | 175 x 58 x 70 mm |
กล้องถ่ายภาพความร้อน DT-870 CEM
CEM DT-870 Thermal Imaging Camera
Accessories:
- Infrared camera with lens, Battery, Adaptor, Gift box.
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า

กล้องถ่ายภาพความร้อน DT-870 CEM
