Description

กราฟฟิก มัลติมิเตอร์ : Graphical Multimeter มัลติมิเตอร์ > เครื่องมือวัด True RMS measurements for accurate AC Voltage and Current measurements

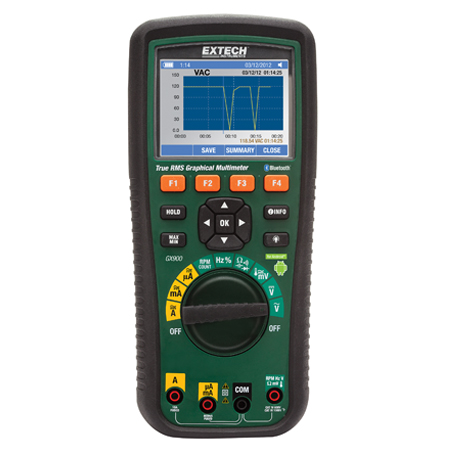

GX900 : True RMS Graphical MultiMeter with Bluetooth® ยี่ห้อ Extech, USA

Transmits key electrical readings to Android™ mobile devices

Features:

Integrated Bluetooth® connects with most Android devices to transmit readings for remote viewing
Works with free Android App to display large, easy-to-read values up to 30ft (10m) away
Low Pass Filter conditions the inputs to provide accurate Voltage and Frequency readings on motors, drives and other large electrical equipment that generate electrical noise
Datalogging stores up to 2500 readings with date and time stamp
Windows® compatible software included for wireless transfer of logged data or recording data in real time
True RMS measurements for accurate AC Voltage and Current measurements
Dual sensitivity frequency functions
Peak Hold (>1ms) Min/Max/Average / Relative (%) / Data Hold / Automatic Data Hold / Auto power off
Backlit graphical dot matrix display allows for customized screens to optimize critical data within a measurement mode and provide visual menus for easy navigation to settings and ranges
Complete with double molded test leads, hanging strap, Type K bead wire temperature probe, PC software, and six AA batteries

For complete specs please download the product datasheet (not available for some accessories)

Specifications:

Display Counts	50,000 count with bargraph
Basic Accuracy	0.05%
ACV Bandwidth	100kHz
DC/AC Voltage	0.001mV to 1000V
DC/AC Current	0.01μA to 10A
Resistance	0.001Ω to 50MΩ
Capacitance	0.001nF to 10mF
Frequency (electrical)	40.00Hz to 10kHz
Frequency (electronic)	0.001Hz to 10MHz
Temperature	-58 to 1832°F (-50 to 1000°C)
Duty Cycle	0.1 to 99.90%
dBm/dBV	-70 to 60dB (nine selectable impedances)
Conductance	50μS
RPM	12,000rpm (with optional inductive pickup)
Clamp Adapter input	1mV/A, 10mV/A or user settable from 0.1mV/A to 100mV/A
Diode/Continuity	3.2V
Dimensions	9.25×4.25×2.5″(235x108x63.5mm)
Weight	1.85lbs (839g)

GX900 : True RMS Graphical MultiMeter for Android ™

Monitor Readings via Bluetooth®
MultiMeter transmits readings to Android
smartphones and tabletsView key electrical readings taken by the GX900 at a safe distance
on your Android device. Power up equipment from remote switches
or use your Android to show readings to a customer/manager.
