Borescope Inspection Camera > รุ่น HDV640 > กล้องส่อง

Borescopes > กล้องส่องในท่อ, กล้องส่อง ในเครื่องยนต์, กล้องส่องภายใน, กล้องส่องในพื้นที่แคบ

กล้องส่องในท่อ, กล้องส่องห้องเครื่อง รุ่น HDV600 Series Vedio Borescope

สามารถบันทึกข้อมูล เป็นภาพ หรือ วีดีโอ ได้ สะดวกในการเชื่อมต่อกับคอมพิวเตอร์ผ่าน USB สนับสนุน SD Card

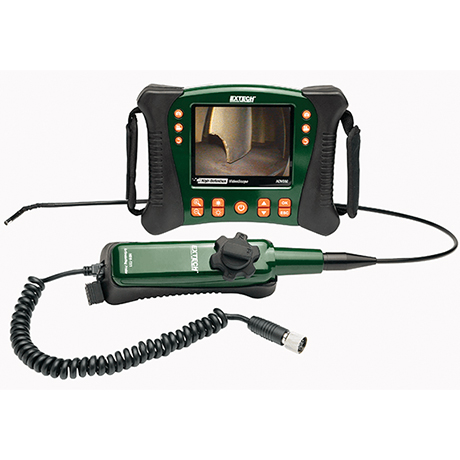

EXTECH HDV640 : HD VideoScope with Handset/Articulating Probe ยี่ห้อ Extech, USA

Inspection Camera with Wired Handset & 6mm Semi-Rigid, Articulating (240°) Probe (1m)

The HDV640 is an Inspection Camera with Wired Handset and 6 mm Semi-Rigid, Articulating (240°) Probe (1 m). Includes a wired handset with non-detachable 6mm semi-rigid probe (1 m) with macro lens. Articulating probe tip adjusts up to 240° viewing angle. 5.7 in. color LCD TFT with high definition 640 x 480 resolution. Compact, high-resolution water-proof camera probe. Camera head with four built-in bright LED lamps with dimmer to illuminate viewed object. Glare-free close-up field of view. The SD memory card included stores more than 14,600 images. Video recording (up to 4 hours) with voice annotation. AV output for viewing images and video directly on a monitor. Video and images can be transferred to a PC via the SD card or USB output. Optional wireless transmitter allows you to transmit video up to 100 ft. (30 m) from the measurement point to your monitor. Includes SD card, 3.7-Volt rechargeable Li-Polymer battery, patch cable, AC adaptor, USB and AV cables, camera probe, and hard carrying case.
กล้องส่องในท่อ Borescopes EXTECH HDV640

Features:

Includes wired handset with nondetachable 6mm semi-rigid probe (1m) with macro lens
Articulating probe tip adjusts up to 240° viewing angle
5.7″ color LCD TFT with high definition 640 x 480 VGA pixel resolution
Compact, high-resolution water-proof camera probe
Camera head with four built-in bright LED lamps with dimmer to illuminate viewed object
Glare-free close-up field of view
SD memory card included to store more than 15,000 images
Video recording (up to 4 hours) with voice annotation
AV output for viewing images and video directly on a monitor
Video and images can be transferred to a PC via the SD card or USB output
Optional wireless transmitter allows you to transmit video up to 100ft (30m) from the measurement point to your monitor
Includes handset with articulating probe, SD card, 3.7V rechargable Li-Polymer battery, patch cable, 100/240V AC adaptor, USB and AV cables, and carrying case

For complete specs please download the product datasheet (not available for some accessories)

Specifications:

Camera		Borescope
Minimum Focus distance	2.36″ (60mm); macro: 0.59” (15mm)	*LCD Color TFT Display	5.7″ (14.5cm) size; 5.3″ (13.5cm) viewable
Field of View	65°	Pixels	640 x 480 VGA pixel resolution (320 x 240 for 4mm camera)
Shaft diameter	0.24″ (6mm)	Frame Rate	30 fps frame rate (NTSC & PAL)
Working length	39″ (1m)	SD Card	2GB SD memory card included (supports up to 32GB SD storage)
Camera Tip bending	240° (120° left, 120° right)	Operating	up to 4 hours AVI video

Applications:
• Home inspection: Inspect in walls for mold, insect infestation, electrical wire or water pipe location
• HVAC: Inspect inside ducts, behind motors & compressors
• Automotive: View inside or around engines & transmissions
• Government: Safety and security inspections
• Industrial: Inspect weld integrity, process equipment, gears, molding machines
• Aerospace: Aircraft inspections for debris or damages

High Definition VideoScope Inspection Cameras

Extech HDV600 High Definition VideoScope Inspection Camera Product Video

HDV640 Include: • HDV600 VideoScope, SD memory card, handset with camera probe and 1m cable (6mm diameter/1m Semi-Rigid Cable), 3.7V rechargable Li-Polymer battery, patch cable, Universal AC adapter (110-240V, four plugs), USB and AV cables, and hard carrying case

warranty

Ordering Information:

HDV640………………High Definition Articulating VideoScope Kit (6mm diameter/1m Semi-Rigid Cable)Video Inspector Monitor (order camera head separately from accessories listed below)
HDV600………………High Definition VideoScope (Monitor and hard carrying case only)Optional camera accessories:
HDV-TX1……………..6mm Articulating VideoScope Camera Head with Macro lens and 1m Semi-Rigid Cable
HDV-WTX1………….6mm Wireless Articulating VideoScope Camera Head w/Macro lens & 1m Semi-Rigid Cable
HDV-TX2……………..6mm Articulating VideoScope Camera Head w/Macro lens and 2m Semi-Rigid Cable
HDV-WTX2………….6mm Wireless Articulating VideoScope Camera Head w/Macro lens & 2m Semi-Rigid Cable
HDV-4CAM-1FM…..4mm VideoScope Camera Head with Macro lens and 1m Flexible Cable
HDV-4CAM-5FM…..4mm VideoScope Camera Head with Macro lens and 5m Flexible Cable
HDV-5CAM-1FM…..5.5mm VideoScope Camera Head with Macro lens and 1m Flexible Cable
HDV-5CAM-3F……..5.5mm VideoScope Camera Head with long depth of field and 3m Flexible Cable
HDV-5CAM-3FM…..5.5mm VideoScope Camera Head with Macro lens and 3m Flexible Cable
HDV-5CAM-30FM…5.5mm VideoScope Camera Head with Macro lens and 30m Flexible Cable
HDV-5CAM-10F……5.5mm VideoScope Camera Head with long depth of field and 10m Flexible Cable
HDV-5CAM-1R…….5.8mm VideoScope Camera Head with long depth of field and 1m Semi-Rigid Cable
HDV-5CAM-1RM….5.8mm VideoScope Camera Head with Macro lens and 1m Semi-Rigid Cable
HDV-5CAM-3R…….5.8mm VideoScope Camera Head with long depth of field & 3m Semi-Rigid Cable
HDV-5CAM-3RM….5.8mm VideoScope Camera Head with Macro lens and 3m Semi-Rigid Cable
HDV-25CAM-10G…25mm VideoScope Camera Head with long depth of field and 10m Fiberglass Cable
HDV-25CAM-30G…25mm VideoScope Camera Head with long depth of field and 30m Fiberglass Cable
HDV-WTX……………Wireless Transmitter
HDV-PC……………….Spare Patch Cable for HDV Series
ADPTR-HDV…………Replacement AC Adaptor
BRD10………………..Wireless USB Video Receiver
