Description
Insulation Tester เครื่องทดสอบความต้านทานฉนวน เครื่องวัดค่าความต้านทาน > High voltage insulation tester
เครื่องทดสอบความต้านทานฉนวน High voltage insulation tester

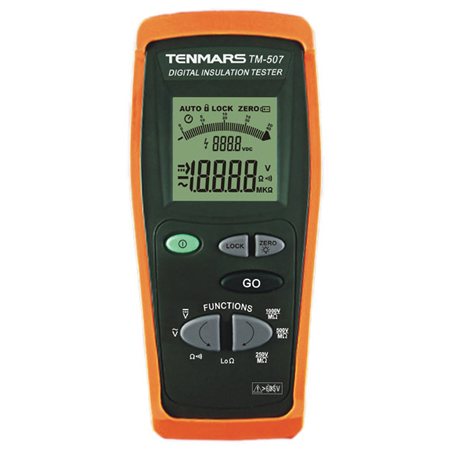

TM-507 : Insulation Tester ยี่ห้อ Tenmars, Taiwan
Safety Precaution: EN 61557, EN 61010-1 CAT IV 600V
Features:
- EN 61557, EN 61010-1 CAT IV 600V
- 4 digit LCD display.
- Automatic Polarity Indication.
- Low battery indication.
- Measures high insulation resistance with auto range:
- 250V: 4MΩ to 1000MΩ.
- 500V: 4MΩ to 2000MΩ.
- 1000V: 4MΩ to 4000MΩ.
- Measures AC and DC voltages: 0V to 600V.
- Function Keys: POWER, GO, ZERO, LOCK, BACKLIT.
- Continuity Test.
- Auto Discharge.
- Auto Power Off.
Specification:
DC Voltage Measurement
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
AC Voltage Measurement
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
Max crest factor
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
Resistance Measurement/Test Continuity with buzzer
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
The buzzer sounds when measured resistance is lower than 30 ohms.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
LO Ohms
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
Test Current: >200mA DC up to 5 ohms (including cable resistance).
Test Current: >45mA DC up to 5 ohms (including cable resistance). Open Circuit Voltage: 4V |
|||||||||||||||||||||||||||||||||||||||||||||||||||
MOhm: Insulation Resistance (Auto Ranging)
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
|
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
