Description
General Industrial Instrument, General Scientific Instrument เครื่องมือวัด ทั่วไป ในงาน อุตสาหกรรม และ วิทยาศาสตร์ Manometer เครื่องวัดความดัน ความเร็วลม Flow Rate – เครื่องวัดความดันต่าง Differential Pressure Meter/Datalogger รุ่น SDL700

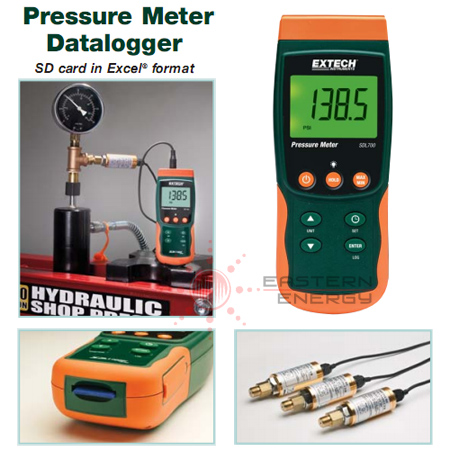

SDL700: Pressure Meter/Datalogger (30, 150, 300psi ) ยี่ห้อ Extech, USA
Records data on an SD card in Excel® format
The SDL700 is a pressure meter/data logger that displays 10 types of pressure on its large backlit dual LCD display. This meter records data on an SD card in Excel format for future reference and analysis. This meter is complete with a 3 year warranty, 6 x AA batteries, SD card, and hard carrying case.
Features:
- Accepts interchangeable transducers with ranges of 30, 150, 300psi (transducers sold separately)
- Meter automatically senses plug-in transducer’s range and calibration
- Displays 10 types of pressure units
- Offset adjustment used for zero function to make relative measurements
- Adjustable data sampling rate: 1 second to 8hrs:59min:59sec
- Stores 99 readings manually and 20M readings via 2G SD card
- Large backlit dual LCD display
- Record/Recall MIN, MAX, Data Hold, Auto Power Off
- Built-in PC interface
- Complete with 6 x AA batteries, SD card, and hard carrying case (transducers sold separately)
- Memory : 20M data records using 2G SD card
- Dimensions : 7.2 x 2.9 x 1.9″ (182 x 73 x 48mm)
- Weight : 490g
- Transducers sold separately
Specifications:
Sensor Type
|
30psi
Ranges
|
150psi
Ranges
|
300psi
Ranges
|
bar | 0.002 to 2 | 0.01 to 10 | 0.02 to 20 |
psi | 0.02 to 29 | 0.2 to 145 | 0.2 to 290 |
kg/cm2 | 0.002 to 2.040 | 0.01 to 10.19 | 0.02 to 20.40 |
mmHg | 2 to 1500 | 10 to 7500 | 20 to 15000 |
inHg | 0.05 to 59.05 | 0.2 to 295.2 | 0.5 to 590.5 |
mH2O | 0.02 to 20.40 | 0.1 to 101.9 | 0.2 to 204.0 |
inH2O | 1 to 802 | 5 to 4010 | 10 to 8020 |
atm | 0.002 to 1.974 | 0.01 to 9.87 | 0.02 to 19.74 |
hPA | 2 to 2000 | 10 to 10000 | 20 to 20000 |
kPA | 0.2 to 200.0 | 1 to 1000 | 2 to 2000 |
Ordering Infornation:
SDL700 …………… SDL700: Pressure Meter/Datalogger
PT30 …………… Pressure Transducer for SDL700 (30psi)
PT150 …………… Pressure Transducer for SDL700 (150psi)
PT300 …………… Pressure Transducer for SDL700 (300psi)
PT300 – 300psi Pressure Transducer
Compatible with SDL700 Pressure Datalogger |
PT150 – 150psi Pressure Transducer
Compatible with SDL700 Pressure Datalogger |
PT30 – 30psi Pressure Transducer
Compatible with SDL700 Pressure Datalogger |
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
Download ดาวน์โหลดไฟล์ข้อมูลสินค้า
