Description
เครื่องตรวจหารอยรั่วของสารทำความเย็น, ตรวจจับน้ำยาแอร์รั่ว ในระบบแอร์, เครื่องปรับอากาศ, ระบบทำความเย็น

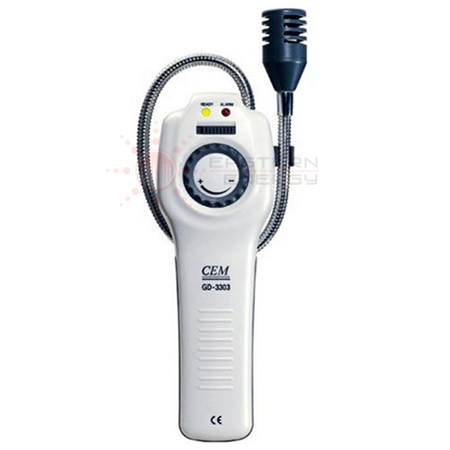

GD-3303 : Refrigerant Leakage Detector ยี่ห้อ CEM
Detect Leakages from Air-Conditioning Units and Cooling Systems
The Refrigerant leak detector detects all CFC refrigerants such as R-22, R-124, R-11 and R-12. The ultra-sensitive long life sensor detects the more current, difficult-to-detect HFC refrigerants such as R-134a, R-404A, and new R-22 replacements, R-410A and R-407C.
Features:
- 16inch gooseneck detector is easy to measure the hard-reached areas
- Highly sensitive and reliable
- Easy to Use: One-hand operation with thumb controlled tick adjust knob. Tick accelerates when sensor tip approaches leak
- Use in contaminated environments: Eliminates background gas concentration with fully adjustable tick rate
- Pinpoint small Leaks: Detects all Refrigerant leaks even tiny leaks
Specifications:
Sensitivity to detect
|
100ppm of R-134a/R-22
|
Sensor Type
|
Low power semiconductor
|
Alarm
|
Visible & Audible at 10% LEL for Refrigerant Leaks
;Can be calibrated for other concentrations or gases
|
Warm-Up
|
Approx. 1 minute
|
Response Time
|
Less than 2 sec. (up to 40% LEL)
|
Duty Cycle
|
Continuous
|
Probe Length
|
16 inch
|
Power
|
Battery: 3″C”Alkaline(Not included)
|
Battery Life
|
8 Hours continuous use, typical
|
Weight
|
498 g
|
Size
|
221mm x 72mm x 46mm
|
Partial list of refrigerants:
R-12
ALTERNATIVES
|
R-22
ALTERNATIVES
|
R-134a
R-401a(MP-39)
R-401B(MP-66)
R-401C(MP-52)
R-406A(GHG)
|
R-407C
R-401A
R-410B
R-507
|
R-414A(GHG-X4)
R-414B(Hot Shot)
R-416A(Frig C,FR12)
|
R-113
R-13B& R-503
ALTERNATIVES
|
R-409A(FX-56)
Freeze 12, Free Zone
GHG-X5, GHG-HP IKON12
|
R-403B
R-508A
R-508B
|
R-502
R-500
ALTERNATIVES
|
HC REFRIGERANTS
(not SNAP approved)
|
R-402A, R-402B
R-404A, R-407A
R-408A, R-411A
R-411B, R-507
|
R-290, R-600A
R-170/R-290
R-600A/R-290
|
*SNAP is the EPA’s Significant New Alternatives Program for ozone, Depleting refrigerants for mobile and stationary A/C systems.
