Description
เครื่องมือวิทยาศาสตร์ อุปกรณ์วิทยาศาสตร์ เครื่องวัดสารทำความเย็น Extech RD200
เครื่องตรวจหารอยรั่วของสารทำความเย็น, ตรวจจับน้ำยาแอร์รั่ว ในระบบแอร์, เครื่องปรับอากาศ, ระบบทำความเย็น

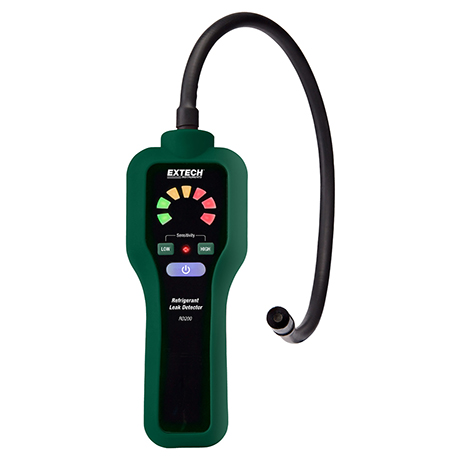

RD200 : Refrigerant Leak Detector เครื่องวัดสารทำความเย็น ยี่ห้อ Extech, USA

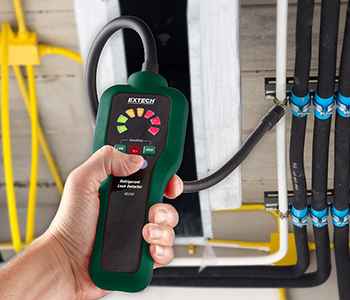

Detect Leaks from Air-Conditioning Units and Cooling Systems
Extech’s Refrigerant Leak Detector is easy to use and is ideal for detecting leaks from air-conditioning units and cooling systems that use all standard refrigerants. The multi-colored LED light bar indicates the level of refrigerant detected by the RD200. Features a field replaceable heated diode sensor and Low/High sensitivity range selection for accurate leak detection. The 16″ (406mm) flexible gooseneck provides easy access in difficult to reach locations.
Features:
- Detects all standard refrigerants using a heated diode sensor (SF6, HFC, CFC, HCFC refrigerants, halogen gas, ethylene, tetrafluoroethylene, trichloroethylene, and most other compounds containing halogen)
- Detects standard refrigerants using a replaceable heated diode sensor (part no. RD200-S)
- Audible and visual alerts
- Seven (7) visual leakage level LED indicators (color coded)
- Low and High selectable sensitivity levels
- Battery status LED indicator
- Low battery indicator
- Test solution (included) allows the user to check the condition of the sensor
- 19.8″ (50.2cm) flexible gooseneck retains its shape and provides easy access in difficult to reach locations
- Complete with Test solution (included), sensor (installed), leak test bottle, 9V battery, and protective hard carrying case
For complete specs please download the product datasheet (not available for some accessories)
Specifications:
Detectable Refrigerants | SF6 electrical equipment and gas, HFC, CFC, HCFC refrigerants, HFC (R134 and R123), halogen gas, ethylene, tetrafluoroethylene, trichloroethylene, and most compounds containing halogen. |
Sensor | Replaceable heated diode gas detector (part no. RD200-S) |
Accuracy | < 2.8g/year (0.1oz./year) |
Sensitivity Levels
|
Low 30g/year (1.05oz./year) High 6g/year (0.2oz./year) |
Test Bottle Solution | 1:1 ethanol (95%) and distilled water |
Warm up Time | 2 minutes (approx.) |
Response Time | Instantaneous |
Auto Power OFF | Automatic shut off after 10 minutes |
Low Battery Indication | Battery status LED glows red |
Power Supply | 9V Battery (rear compartment under protective jacket) |
Battery Life | 30 hours of normal use |
Operating Conditions | 0°C to 50°C (32°F to 122°F) <80%RH |
Storage Conditions | ‐10°C to 80°C (14°F to 176°F) <70%RH |
Length: Flexible Gooseneck only | 50.2cm (19.8”) |
Length: Gooseneck w/ Sensor | 52cm (20.5”) |
Meter Dimensions | 185 x 72 x 35mm (7.3 x 2.8 x 1.4”) |
Flexible Probe Length | 450mm (18″) |
Dimensions | 184x70x40mm(7.2′′ x2.8′′ x1.6 ′′) |
Weight | 305g (10.8 oz.) |
Safey | CE; Designed to SAE J1627 |
![]() |
Extech’s Refrigerant Leak Detector is easy to use and is ideal for detecting leaks from air-conditioning units and cooling systems that use all standard refrigerants. The multi-colored LED light bar indicates the level of refrigerant detected by the RD200. Features a field replaceable heated diode sensor and Low/High sensitivity range selection for accurate leak detection. The 16″ (406mm) flexible gooseneck provides easy access in difficult to reach locations. |
Ordering Information:
RD200……………..Refrigerant Leak Detector
RD200-S………….Replacement Refrigerant Leak Sensor for RD200
RD200-S………….Replacement Refrigerant Leak Sensor for RD200
