เครื่องวัดมิลลิโอห์ม มิเตอร์ Milliohm Meter, ไมโครโอห์ม Micro-Ohm Meter

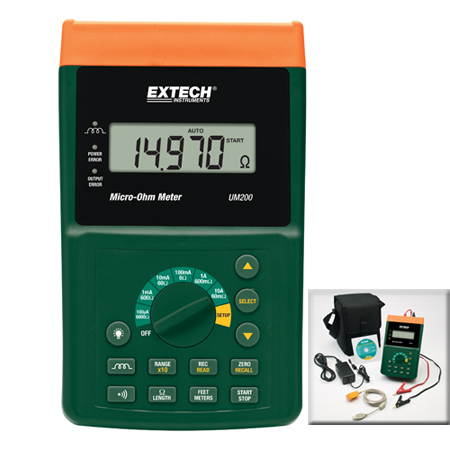

UM200: High Resolution Micro-Ohm Meter ยี่ห้อ Extech, USA

Precision meter provides resolution down to 1µΩ

The UM200 is a precision Micro-Ohm meter which features a resolution down to 1µΩ. The UM200 has 6 ranges with 3 sub-ranges in each current range. Measurement of resistive and inductive materials. 5-Digit backlit LCD, PC interface. Auto or Manual ranging, 10A maximum test current. Store/Recall up to 3000 measurements. Cable length measurement (feet or meters). Complete with 4-wire cables with Kelvin clip connectors, rechargeable Li-Polymer battery, AC adapter/charger, software and USB cable, and soft carrying case.

Features:

6 ranges with 3 sub-ranges in each current range
Measurement of resistive and inductive materials
5-Digit backlit LCD, PC interface
Auto or Manual ranging, 10A maximum test current
Store/Recall up to 3000 measurements
Cable length measurement (feet or meters)
Complete with 4-wire cables with Kelvin clip connectors, rechargeable Li-Polymer battery, AC adapter/charger, software and USB cable, and soft carrying case

For complete specs please download the product datasheet (not available for some accessories)

Specifications:

Unit	Range	Resolution	Current	Accuracy (%rdg)
Resistance	60mΩ	1μΩ	10A	±(0.25% + 25μΩ)
	600mΩ	10μΩ	1A	±(0.25% + 250μΩ)
	6Ω	100μΩ	100mA	±(0.25% + 2.5mΩ)
	60Ω	1mΩ	10mA	±(0.25% + 25mΩ)
	600Ω	10mΩ	1mA	±(0.25% + 250mΩ)
	6kΩ	100mΩ	100μA	±(0.75% + 3Ω)
Power	Rechargeable Li-Polymer Battery
Dimensions	10.1 x 6.1 x 2.2″ (257 x 155 x 57mm)
Weight	2.6lb (1,160g)
