เครื่องทดสอบความเป็นฉนวน Digital Insulation Tester รุ่น MG310

เครื่องทดสอบความเป็นฉนวน, เมกะโอห์มมิเตอร์ Insulation Resistance Muasure Range: 5.5GΩ Insulation Voltages : 1000V ยี่ห้อ Extech, USA

Description

Insulation Tester, Megohm meter, เครื่องวัดความต้านทานฉนวน > เมกะโอห์มมิเตอร์

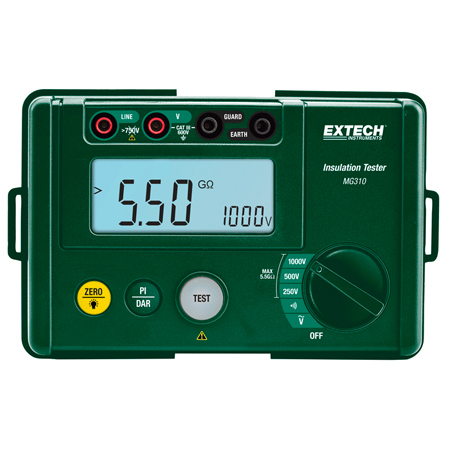

MG310: Digital Insulation Tester ยี่ห้อ Extech, USA

Compact Insulation Resistance Tester with Snap-On Protective Cover

The MG310 is a Compact Insulation Resistance Tester which allows quick and easy testing/troubleshooting of motors, transducers, and other industrial appliances. Wide range measurement up to 1000V with Insulation Resistance to 5.5GΩ. Includes an easy snap on protective hard cover and soft pouch to conveniently transport your meter and accessories to the next job site or to safely store away. Featuring Low Resistance measurement with Zero function, Continuity beeper, Large 2000 count dual display with backlight, High voltage and overload indication, Auto-discharge and voltage output warning functions as well as Low battery indication. Complete with test leads, alligator clips, 6 x AA batteries, hard cover, and soft carrying case.
Features:
  • Test Voltages of 250V, 500V, and 1000V
  • Measure Insulation Resistance to 5.5GOhm (autoranging)
  • AC Voltage measurement from 30 to 600V
  • Polarization Index measurement (PI)
  • Dielectric Absorption Ratio measurement (DAR)
  • 10MOhm internal resistance test
  • Low Resistance measurement with Zero function
  • Continuity beeper
  • Large 2000 count dual display with backlight
  • High voltage and overload indication
  • Auto-discharge and voltage output warning functions
  • Low battery indication
  • Complete with test leads, alligator clips, 6 AA batteries, hard cover, and soft carrying case

For complete specs please download the product datasheet (not available for some accessories)

Specifications:
Unit
Range
Basic Accuracy
 Test Voltage
 250V/500V/1000V
 Insulation Resistance
 (autoranging)
 0.00 to 99.9MΩ , 100M to 5.5GΩ
 ±5% of reading
 AC Voltage
 30 to 600V
 ±2% of reading
 Resistance
 0.00 to 200Ω
 ±2% of reading
 Dimensions
 6 x 4 x 2.8″ (150 x 100 x 71mm)
 Weight
 1.5lbs (0.7kg)
MG310: Digital Insulation Tester Compact Insulation Resistance Tester with Snap-On Protective Cover
 Compact Insulation Resistance Tester allows
quick and easy testing/troubleshooting of
motors, transducers, and other industrial
appliances. Wide range measurement up
to 1000V with Insulation Resistance to
5.5GΩ. Includes an easy snap on protective
hard cover and soft pouch to conveniently
transport your meter and accessories to the
next job site or to safely store away.
CE CATIII600V warranty12 MG310: Digital Insulation Tester
Accessories:
  • Complete with test leads, alligator clips, 6 AA batteries, hard cover, and soft carrying case
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า

measuring instruments Download ดาวน์โหลดไฟล์ข้อมูลสินค้า
