Sale!

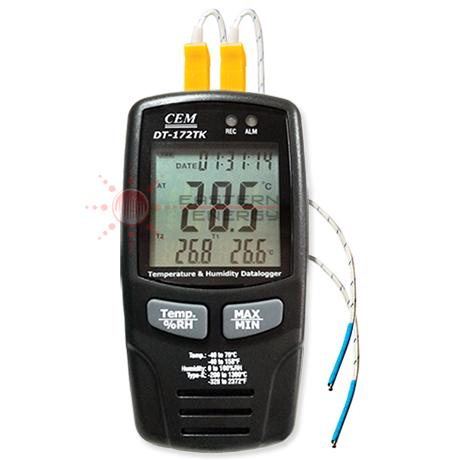

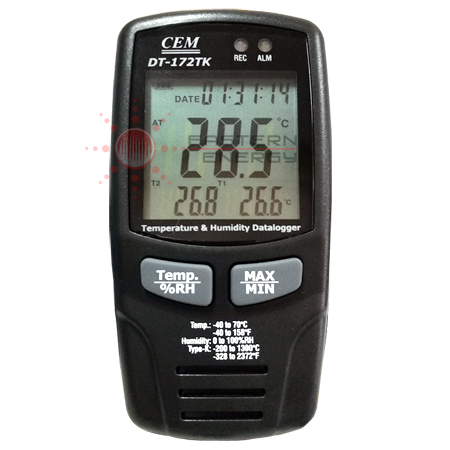

เครื่องบันทึกอุณหภูมิ ความชื้น USB Datalogger w/Type K Dual Thermometer รุ่น DT-172TK

฿6,900.00 ฿5,900.00

DT-172TK CEM เครื่องวัดและบันทึกอุณหภูมิ-ความชื้น with Thermometer 2 Channel Type K & USB interface, แสดงผลข้อมูลแบบกราฟ หรือ Excel ยี่ห้อ CEM

รายละเอียด

General Industrial Instrument, General Scientific Instrument เครื่องมือวัด >เครื่องวัดและบันทึกอุณหภูมิ และความชื้น  โพรบ Type K รุ่น DT-172TK,  Humidity & Temperature Datalogger with USB interface

Humidity & Temperature Datalogger with Type K Dual Input Thermometer

DT-172TK : Temperature and Humidity Datalogger w/Type K Dual Input Thermometer ยี่ห้อ CEM

The temperature & Humidity Datalogger is designed with a high accuracy Temperature & Humidity Sensor. Thia datalogger os provided features of high accuracy, fast response and stability. It is widely used for monitoring and collecting data of environment temperature and humidity.DT-172TK CEM เครื่องวัดและบันทึกอุณหภูมิ-ความชื้น
เครื่องวัดและบันทึกค่าอุณหภูมิความชื้น CEM DT-172TK ต่อโพรบ Type K ได้ 2 ช่อง ออกแบบมาวัดอุณหภูมิ ความชื้นโดยเซนเซอร์มีความแม่นยำสูง, ตอบสนองรวดเร็ว และมีเสถียรภาพ พร้อมช่วงใช้งานที่กว้าง สามารถบันทึกข้อมูลข้อมูลได้ถึง 67,584 ข้อมูล
  • ช่วงวัดอุณหภูมิ -40 ถึง 70°C , ช่วงวัดความชื้น 0 ถึง 100%RH
  • ช่วงวัดอุณหภูมิ K1, K2 -200 ถึง 1,300°C (*ขึ้นกับสายโพรบ )
  • เลือกหน่วยวัดอุณหภูมิ เป็น องศาเซลเซียส หรือ องศาฟาเรนไฮซ์ ได้
  • หน่วยความจำ 67,584 ข้อมูล
  • เลือกความละเอียดในการบันทึกได้ ตั้งแต่ 1 วินาที ถึง 12 ชั่วโมง
  • แสดงข้อมูล-ดึงข้อมูล เป็นกราฟ หรือ Excel Format ได้
  • มี LED แสดงสถานะ การบันทึก และ เตือน Alarm (ตั้งช่วงอุณหภูมิ/ความชื้นได้)
  • เชื่อมต่อ คอมพิวเตอร์ ผ่านทางสาย USB
  • เคสสวมกันกระแทก พร้อมสายล็อกกันขโมย
  • สนับสนุน Windows 2000 / XP / Vista และ Windows7 – Windows10 ( 32-bit, Win7 64-bit ) Windows7 ( 32-bit, 64-bit )
Features:
  • Memory for 67,584 values
  • LCD display
  • Simple rate can be by PC from 1sec. to 12hr.
  • Status Indication via LED
  • Download collected data through PC’s USB
  • Alarm display if user-defined maximum/minimun valures are exceeded
  • High Accuracy
Specifications:
 Relative Humidity Overrall Range
Accuracy (0 to 20 and 80 to 100%)
Accuracy (20 to 40 and 60 to 80%)
Accuracy (40 to 60%)
10 to 100%
±5.0%
±3.5%
±3.0%
 Temperature  Overrall Range
Accuracy (-40 to -10 and +40 to +70°C)
Accuracy (-10 to +40°C)
-40 to 70°C (-40 to 158°F)
±2°C (3.6°F)
±1°C (1.8°F)
 Temperature K1, K2  Overrall Range
Accuracy (-100 to 1300°C)
Accuracy (-200 to -100°C)
 -200 to 1300°C (-328 to 2372°F)
±(0.15%rgd +1.0°C (1.8°F)
±(0.50%rgd +2.0°C (3.6°F)
 Memory  67584 (each for Temperature, Humidity, Temp. K1, Temp. K2)
 Measuring rate  1Sec. to 12h
 Battery type  3.6V Lithium
 Battery life  3 Months (rate at 5sec.) depending on measuring rate and use of alarm leds
 Size  94mm x 50mm x 32mm
 Weight  91g
Datalogger Setting:Datalogging Setting Data Graph:Data Graph
Data list:Data List Data Summary:Data Summary
Accessories:
  • DT-172TK Datalogging RH/Temperature Meter
  • แผ่น CD ซอฟต์แวร์ (USB Driver and Logger Software)
  • แบตเตอรี่แบบลิเธียม 3.6v Lithium Battery
  • 2 x Wire probe Type K probe, USB cable, เคสสวมกันกระแทก พร้อมสายล็อกกันขโมย
  • Instruction Manual
CE      DT-172TK CEM เครื่องวัดและบันทึกอุณหภูมิ-ความชื้น Humidity-Temperature Datalogger
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า

measuring instruments     Download ดาวน์โหลดไฟล์ข้อมูลสินค้า
PDF  DT-172TK Instruction Manual ( 0KB )
