เครื่องมือวิทยาศาสตร์ อุปกรณ์วิทยาศาสตร์ เครี่องวัด เครี่องวัดเสียงสะสม, เครื่องวัดเสียง ปริมาณเสียงสะสม
เครื่องวัดเสียง บันทึกข้อมูล Datalogger บันทึกข้อมูลได้มากกว่า 1,000,000 ข้อมูล ช่วงการวัดเสียง 30 ถึง 90dB; 50 ถึง 110dB; 70 ถึง 140dB

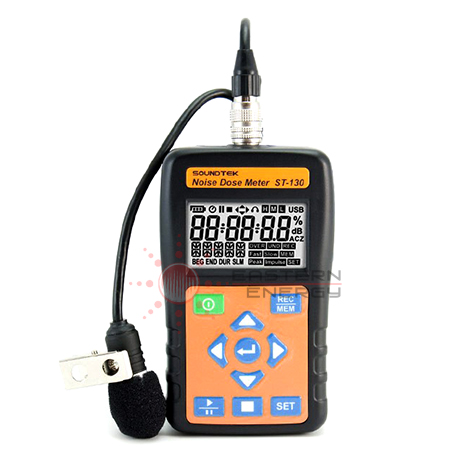

Noise Dose Meter แบรนด์ Soundtek รุ่น ST-130 Data includes Start/Stop Time, %Dose, TWA8, LEP, 8h, Leq, SEL, LN%, SPLMAX, SPLMIN, PeakMAX, when used in the Dose meter mode Frequency Weighting: A / C / Z
มาตราฐาน Standards : IEC 61252-1993, IEC 61672-1-2003, ANSI S1,25-1992, ANSI S1,4-1983, ANSI S1,43-1997
ST-130 : เครื่องวัดเสียงสะสม Noise Dose Meter SOUNDTEK ST-130 ยี่ห้อ Tenmars, Taiwan
Measurement Items(NDM) Doses%, Lxyp, Lxmax, Lxmin, Lxeq, SEL(LAE), Peak, LAVG, TWA, LEP, LN%
Measurement Items(SLM) Lxyp,Lxmax,Lxmin,Lxeq,SEL(LAE),Peak
The ST-130/ST-130S is designed to test noise exposure in accordance with US Occupation Safety and Health Administration (OSHA), American Conference of Governmental Industrial Hygienists (ACGIH), Safety and Health Administration (MSHA), DOS, and ISO standards. Scarlet ST-130/ST-130S also provide fast and easy on-site surveys to help determine noise reduction requirements. The meter can also be used in SLM (sound level meter) mode. The SLM mode has a data logging feature that can recode up to 1000K readings which can be downloaded and transmitted to PC for further analysis through built-in USB interface
Features:
- Performs OSHA and IEC Noise accumulation surveys
- Six built-in standard dose measurement setups (OSHA, MSHA, DOD, ACGIH, ISO85, ISO90)
- One user-defined measurement setup
- Adjustable Criterion Level, Exchange Rate, and Threshold
- Data logger up to 1,000,000 readings, sampling times between 1 sec and 24 hours
- Stores up to 10,000 dose meter survey result
- Data includes Start/Stop Time, %Dose, TWA8, LEP, 8h, Leq, SEL, LN%
- SPLMAX, SPLMIN, PeakMAX, when used in the Dose meter mode
- In sound level mode, meter displays sound level, time-averaged sound level (Leq), PeakMAX, and sound exposure level (SEL)
- USB interface with Windows XP / Vista / 7 / 8 / 10
Display | Single LCD MAX reading 999999 |
Display Refresh Rate | 1 Time/second |
Standards | IEC 61252-1993 IEC 61672-1-2003 ANSI S1,25-1992 ANSI S1,4-1983 ANSI S1,43-1997 |
Microphone(ST-130S) | 1/2” pre-polarized condenser microphone build in preamplifier: 1V/Pa@250HZ, frequency range: 20 Hz~12.5 kHz, Thermal noise: <25 dB(A) |
Microphone(ST-130) | 1/2 inch Electret condenser microphone |
Measurement Items(NDM) | Doses%, Lxyp, Lxmax, Lxmin, Lxeq, SEL(LAE), Peak, LAVG, TWA, LEP, LN% |
Measurement Items(SLM) | Lxyp,Lxmax,Lxmin,Lxeq,SEL(LAE),Peak |
Measurement Range | 30dB to 130dB (A) 35dB to 130dB (C) 40dB to 130dB (Z) |
Dynamic Range | 60 dB |
Accuracy | ±1.5dB@94dB 1KHZ |
Internal memory | MAX Datalogger data : 10000(NDM); 1000000(SLM) |
Maximum Peak C Weighting Sound Level Measurement |
90~143 dB |
Time Weighting | Fast, Slow, Impulse, Peak |
Frequency Weighting | A/C/Z |
Frequency Range | 20Hz~8KHz |
Starting Time | < 10 Second |
Battery Life(ST-130) | 24 hours ( 9V×1 battery Alkaline ) |
Battery Life(ST-130S) | 20 hours ( 9V×1 battery Alkaline ) |
Dimensions | 113(L) x 65(W) x 34(H) mm |
Applications:
- Evaluation of environmental noise, Measurements of noise at workplaces, Assessment of product noise.
Accessories:
- Tenmars ST-130 Noise Dose Meter
- ST130 User’s manual
- Foam lined carrying case
- 1/2 inch Electret condenser microphone with wind screen and clothing clip
- Microphone windscreen
- Software on CD
- Mini USB Cable (Mini B type)
- 9 volt battery
- Manufacturers Calibration Certificate
