Sale!

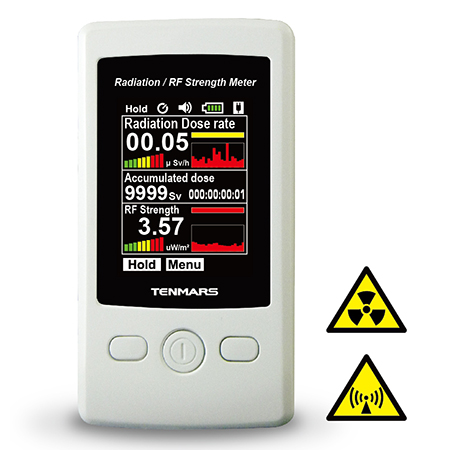

เครื่องวัดกัมมันตรังสี/สนามแม่เหล็กไฟฟ้า Radiation / RF strength Meter รุ่น TM-93

฿17,900.00 ฿13,900.00

2 in 1 เครื่องวัดรังสีกัมมันตรังสีแอลฟา รังสีบีตา รังสีแกมมา (Gamma, Beta, X-Rays)/เครื่องวัดค่าสนามแม่เหล็กไฟฟ้า (RF Strength Meter) ยี่ห้อTenmars, Taiwan

รหัสสินค้า: TM-93 Tenmars หมวดหมู่:

รายละเอียด

เครื่องวัดรังสี > กัมมันตรังสี >  Digital Radiation Meter > ตรวจวัดการรั่วไหลของธาตุกัมมันตรังสี, รังสีแอลฟา, รังสีบีตา, รังสีแกมมา (gamma, beta or X-rays) เครื่องวัดความเข้มคลื่นแม่เหล็กไฟฟ้า เครื่องวัดคลื่นแม่เหล็กไฟฟ้า เครื่องวัดสนามแม่เหล็ก เครื่องวัดค่าสนามแม่เหล็กไฟฟ้า (RF Strength Meter)

TM-93 : เครื่องวัดรังสีสารกัมมันตรังสี  รังสี X-ray, รังสีเบตา Beta(ß) และรังสีแกมมา Gamma(y) เครื่องวัดค่าสนามแม่เหล็กไฟฟ้า (RF Strength Meter)

Digital Nuclear Gamma Radiation Detector Monitor Geiger Counter Dosimeter + Built-in Geiger-Mueller tube, Made in Taiwan.

TM-93 Radiation / RF strength Meter the survey meter in measuring the beta, gamma and x-ray radiation. It is useful in monitoring the environment/home safety, nuclear, medical, mining and metal industries. It is also ideal for the border control, customs and cargo inspections.
The Geiger Counter is designed to be sensitive to Beta radiation and Gamma Radiation including x-rays.
TENMARS TM-93 เครื่องวัดกัมมันตรังสี Radiation Meter
Features:
  • 4 digits, 2.4 inches color TFT LCD
  • Gamma radiation dose rate and dose measurement . Alert mode indicator
  • Bar Graph display
  • Sampling rate:6 seconds per time
  • Battery life: approx. 10 hours
  • Dimensions :115x60x31mm (LxWxH)
  • RF dose rate: histogram
  • Audible key tone alarm function
  • Data hold
  • 5V USB external power supply
  • Power :9V alkaline battery
  • Weight : approx. 170 g
TENMARS TM-93 เครื่องวัดกัมมันตรังสี Radiation Meter
Radiation – Specifications:
 Sample rate  1 time /10 seconds or 1 time /40 seconds
 Radiation sensor  Geiger- mueller tube
 Measurement range  0.05µSv/h ~39.99µSv/h  5.00µRem/h~3999µSv/h
 Resolution  0.01µSv/h  0.01µRem/h
 Accuracy  ±15% cesium-137
 Gamma energy range  10KeV to 1.25MeV
 X-rays energy range  3KeV to 3.0MeV
 β-beta energy range  25KeV to 3.5MeV
 CPM  0~1999
 CPS  0~212
 Dose logger interval  1 to 999 days
TENMARS TM-93 เครื่องวัดกัมมันตรังสี Radiation Meter
RF strength – Specifications:
 Sample rate  1 time /10 seconds
 RF sensor  Single axis sensor
 Measurement range  0.1~14.0 V/m
 Accuracy  ±2dB to 2.45GHz
 Frequency range  50MHz to 3.5GHz
 Range  0.02µW/m² to 484.6µW/m²
0.01µW/cm² to 45.3µW/cm²
36.1mV/m to 13.90V/m
0.01mA/m to 30.01 mA/m
-46 dBm to 16 dBm
 Resolution  0.01µW/m²,0.01µW/cm²
0.2 mV/m,0.02 mA/m,2dB
เครื่องวัดกัมมันตรังสี TENMARS TM-93
Environmental status display:

Safe zone green average zone yellow danger zone red The preset color zones are for reference only: Users can adjust the yellow high and low zones.

Safe Zone  Dose rate Range  RF strength
 The Green zone  ≦0 .19μ sv/h  0 ~0 .0 3 mW/m²; 0 ~0 .1 V/m
 The Yellow zone  0.2 ~ 0.5μ sv/h  0.1 ~2.0 V/m
 The Red zone  >0.5 1μ sv /h  ≧2.1 V/m
เครื่องวัดกัมมันตรังสี TENMARS TM-93
Accessories:
• 1 x Radiation / RF Strength Monitor
• 1 x User’s Manual
• 1 x 9V battery
• 1 x Handy & Soft Carrying Pouch
CETenmars TM-93 Radiation / RF strength Meter เครื่องวัดกัมมันตรังสี/สนามแม่เหล็กไฟฟ้า
เครื่องวัดกัมมันตรังสี TENMARS TM-93
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า

measuring instruments  Download Brochure ดาวโหลดไฟล์ข้อมูลสินค้า

TENMARS TM-93 เครื่องวัดกัมมันตรังสี Radiation Meter
PDF  TM-93 Instruction Manual ( 0KB )
