เครื่องวัดความหนาสี Coating Thickness meter รุ่น CM-8822

฿8,800.00

Coating Thickness meter > เครื่องวัดความหนาสีบนวัสดุที่แม่เหล็กดูดติด/ดูดไม่ติด (non-magnetic/magnetic materials) Range : 0~1000 μm ยี่ห้อ Landtek

รหัสสินค้า: CM-8822 หมวดหมู่:

รายละเอียด

เครื่องวัดความหนาสี Coating Thickness meter รุ่น Landtek CM-8822

เครื่องวัดความหนา Coating Thickness meter > เครื่องวัดความหนาผิวเคลือบ > Coating Thickness meter Coating

Thickness meter เครื่องวัดความหนาสี รุ่น CM-8822

CM-8822 : Coating Thickness meter ยี่ห้อ Landtek

คุณสมบัติ:

  • F Probe ใช้สำหรับวัดความหนาของสารเคลือบที่แม่เหล็กไม่ดูดเช่น สี พลาสติก ชุบกัลป์วาไนท์ ชุบทอง ชุบเงิน ทองแดง สังกะสีอลูมิเนียม โครเมี่ยม ซึ่งเคลือบอยู่บนโลหะกลุ่มเหล็กเช่น เหล็ก เหล็กกล้า เหล็ก Stanless
  • N Probe ใช้สำหรับวัดความหนาของสารเคลือบหรือฉนวน เช่น  สี พลาสติก ยาง ซึ่งเคลือบอยู่บนโลหะนอกกลุ่มเหล็กเช่น ทองแดง สังกะสี ดีบุก (โลหะทีแม่เหล็กไม่ดูด)
  • หน้า จอขนาด 4 digits, 10mm
  • ช่วง วัด 0 -1000 μm / 0 – 40mil
  • ความละเอียด 0.1 μm ที่ช่วงวัด 0 – 99.9 μm และ 1 um ที่ ช่วงวัดเกิน 100μm
  • ความ เที่ยงตรง ±2.5 μm
  • แบตเตอรี่ ขนาด AA จำนวน 4 ก้อน
Digital Paint Coating Thickness Gauge  CM8822
Features:
  • It meets the standards of both ISO2178 and ISO2316. Suitable for the laboratory and for use in harsh field conditions
  • The F probes measure the thickness of non-magnetic materials such as paint, plastic procelain enamel, copper, zinc, aluminum, chrome etc. on magnetic materials such as iron, nickel and etc. It is often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper etc.
  • The NF probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder applied to aluminum, brass, non-magnetic stainless steel, etc.
  • Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
  • Wide measuring range and high resolution.
  • Digital display gives exact reading with no guessing or errors
  • The use of durable, long lasting components, including a strong, light weight ABS plastic housing assures maintenance free
  • Shaped to fit comfortably for right-handed or left handed person
 Specifications:
 LCD display  4 digits, 10mm LCD
 Coating thickness range  0 – 1000 μm / 0 – 40 mil
 Resolution  0.1 μm (0 – 99.9 μm) ; 1 um (over 100μm)
 Accuracy  ± 1 – 3% n or 2.5 um (whichever is greater)
 Power supply  4 x 1.5V AA (UM3) batteries (not included)
 Operation Temperature  0 – 50°C
 Operation Humidity  below 80%
 Dimensions  161 x 69 x 32 mm (6.3 x 2.7 x 1.2 inch)
 Weight  approx. 260g (after batteries inserted)

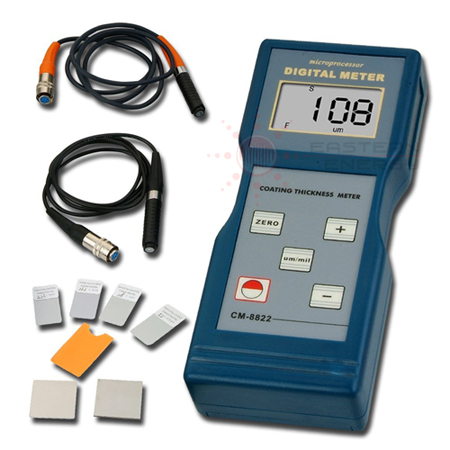

Accessories:
  • 1pc coating thickness gauge (main unit)
  • 1pc F probe (accessory)
  • 1pc NF probe (accessory)
  • 1pc black storage case with handle
  • Calibration foils
  • Aluminum substrate
  • Iron substrate
  • 1 instruction booklet
  • Packed into the full set black storage case with handle
  • Then packed into standard factory box

CE    เครื่องวัดความหนา Ultrasonic Coating Thickness meter

หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า


  Download Brochure ดาวโหลดโบร์ชัวร์สินค้า
PDF  CM-8822 Instruction Manual ( 0KB )
