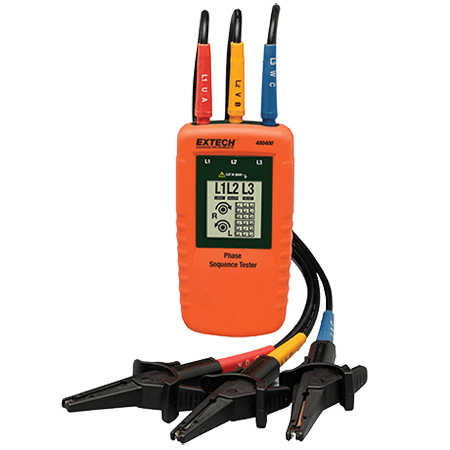

เครื่องมือวัดเฟส Phase Sequence Tester เครื่องตรวจวัดลำดับเฟส Phase Sequence Tester รุ่น 480400
EXTECH 480400: Phase Sequence Tester ยี่ห้อ Extech, USA
Displays graphical phase orientation
The 480400 Phase Sequence Tester has a 40 to 600-Volt rated range for testing phase orientation of 3-phase power sources over a 15 to 400Hz frequency range. Multiline graphical LCD indicates phase orientation (clockwise or counter-clockwise) and whether each of the phases is live. No battery required. Comes complete with cable, three large color coded alligator clips, and pouch case.
เครื่องตรวจวัดลำดับเฟส สำหรับใช้ตรวจวัดทิศทาง, ลำดับของเฟส เช่น มอเตอร์ 3 เฟส, ไฟฟ้าระบบ 3 เฟส หน้าจอ LCD แสดงผลจำนวนเฟส และ ทิศทางของเฟส
Features:
- 40 to 600VAC rated test range for testing phase orientation of three phase power sources over 15 to 400Hz frequency range
- Graphical multiline LCD indicates phase orientation (clockwise or counter-clockwise) and whether each of the three phases is live
- Durable housing is double molded
- Easy to open alligator clips with wide jaws
- Tests phase orientation of three phase power sources
- Dimensions: 5.1×2.7×1.25″ (130x69x32mm); Weight: 4.5oz (130g)
- Complete with cable, three large color coded alligator clips, and pouch case
- CAT III-600V; CAT IV-300V
- No battery required
- IP40 Splashproof Housing
Specifications:
Unit | Range |
---|---|
Phase Sequence | Yes |
Voltage | 40 to 600VAC |
Frequency | 15 to 400Hz |
Current pickup | 1 mA |
Nominal Test current (in per phase) | 1 mA |
Maximum Operating Voltage (Ume) | 600 V |
Type of protection | IP 40 |
Dimensions | 5.1×2.7×1.3″ (130x69x32mm) |
Weight | 4.6oz (130g) |
Approvals | CE (EU directives) |
Safety For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (1995): EN61010-1 (1995) Overvoltage Category III 600V, Pollution Degree 2. |
OrderingInformation:
480400……..Phase Sequence Tester
TL400……….Replacement Test Leads
480400……..Phase Sequence Tester
TL400……….Replacement Test Leads
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
