รายละเอียด
เครื่องมือวิทยาศาสตร์ อุปกรณ์วิทยาศาสตร์ เครื่องมือวัดแรงดึง เครื่องวัดแรงกด High Capacity Force Gauge with PC Interface

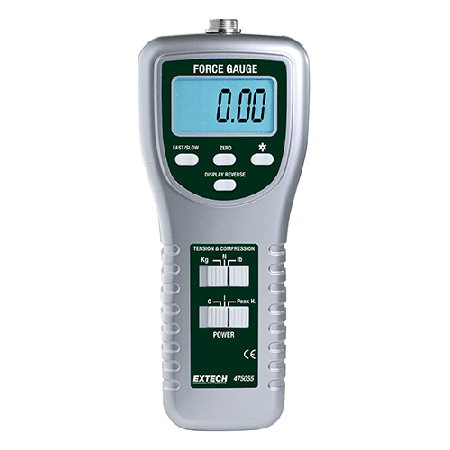

475055 : High Capacity Force Gauge with PC Interface ยี่ห้อ Extech, USA
Three-range force gauge (tension/compression) with 0.5% basic accuracy
475055 is a High Capacity Force Gauge with PC Interface. Measuring ranges from 0.05 to 100-kilograms, 0.05 to 220-pounds, 0.2 to 980 Newton. Basic accuracy of 0.5-percent. Tension or Compression, Peak hold and Zero functions. Positive/Reverse display for easy readability. Large LCD with back light feature. RS-232 PC interface with optional software available (407001). Complete with tension and compression adaptors, 6 AA batteries and case.
High Capacity Force Gauge with PC Interface Features:
- Ranges: 0.05 to 100kg; 0.05 to 220lbs; 0.2 to 980 Newton
- Basic accuracy 0.5%
- Tension or Compression, Peak hold and Zero functions
- Positive/Reverse display for easy easy readability
- Large LCD with backlight feature
- RS-232 PC interface
- Optional software
- Complete with tension and compression adaptors, six AA 1.5V batteries, and case
For complete specs please download the product datasheet (not available for some accessories)
Specifications:
Range
|
0.05 to 100kg
0.05 to 220lbs 0.2 to 980 Newton |
|
Accuracy(23°C) | ±(0.5%rdg + 0.1lbs, 0.1kg or 0.4N) | |
Resolution | 0.05lbs, 0.05kg, 0.2 Newtons | |
Overload capacity | 150kg | |
Data Output | RS-232 serial interface with 16-bit data stream output | |
Display | 5 digit LCD type; Digit height: 0.63” (16mm) | |
Update Rate | Fast mode 0.2 seconds; Slow mode 0.6 seconds | |
Full scale deflection | <1mm | |
Transducer type
|
S-type load cell with 2 hooks (thread size: M6 x 1mm ISO)
and 6.5 ft (2m) cable
|
|
Peak Hold | FreezesMaxreadingondisplay | |
Power Supply | Six 1.5V “AA”(UM-3) batteries or DC9V adaptor (not included) | |
Dimensions | Meter: 8.5 x 3.5 x 1.8” (215 x 90 x 45 mm) Sensor with 2 hooks: 5.7 x 2.0 x 0.6” (145 x 51 x 15 mm) Cable length: 6.5 ft. (2m) |
|
Weight | Meter: 1 lb (450g); Sensor: 0.84 lbs (380g) |
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
Download ดาวน์โหลดไฟล์ข้อมูลสินค้า
