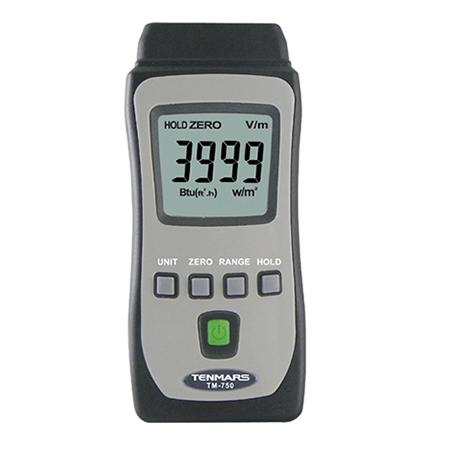

เครื่องวัดแสงอาทิตย์ Solar Power Meter รุ่น TM-750

฿3,000.00

Solar Power Meter > เครื่องมือวัด เครื่องวัดพลังงาน วัดความเข้ม แสงอาทิตย์ เครื่องวัดกำลังงานแสงอาทิตย์ เครื่องวัดกำลัง แสงอาทิตย์ ยี่ห้อ Tenmars, Taiwan

สินค้าหมดแล้ว

รหัสสินค้า: Tenmars TM-750 หมวดหมู่:

รายละเอียด

Solar Power Meter > เครื่องมือวัด เครื่องวัดพลังงาน วัดความเข้ม แสงอาทิตย์ เครื่องวัดกำลังงานแสงอาทิตย์ เครื่องวัดกำลัง แสงอาทิตย์ > Solar Power Meter

TM-750 : เครื่องวัดแสงอาทิตย์ Solar Power Meter ยี่ห้อ Tenmars, Taiwan

TM-750 Solar Power meter is ideal for the measurement of the solar radiation that is emitted by the sun from a nuclear fusion reaction that creates electromagnetic energy.
The units of measure are Watts per square meter or BTU, the typical test and measuring applications are:
เครื่องวัดแสงอาทิตย์ TM-750
  • Solar radiation measurement.
  • Solar power research
  • Physics and optical laboratories
  • Identify high performance windows
  • Meteorology
  • Simple to use general data

Features:

  • 3½ digits LCD display with maximum reading of 3999
  • Measuring the Solar radiation emitted by the sun
  • Display units: W/m2 (Watts per square meter) or BTU
  • Data Hold/ MAX/MIN functions
Specifications:
 Range  2000W/m2, 634Btu/(ft2*h)
 Resolution  1W/m2, 1Btu/(ft2*h)
 Accuracy  typically within   10W/m2[+/-3 Btu / (ft2*h) ] or +/-5%,
whichever is greater in sunlight; Additional temperature
induced error   0.38W/m2 / ºC  [+/- 0.12 Btu / (ft2*h)/ ºC ] from 25ºC
 Angular accuracy  Cosine corrected ºC
 Sampling Time  Approx. 0.25 second
 Power  2 batteries 1.5V “AAA”
 Dimension  108(L) x 48(W) x 23(H)mm
 Weight  Approx. 80g
เครื่องวัดแสงอาทิตย์ TM-750
Accessories:
• User manual, 2 x batteries 1.5V “AAA” and Carrying case

CE

หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า

measuring instruments

 Download Brochure ดาวโหลดโบร์ชัวร์สินค้า
เครื่องวัดแสงอาทิตย์ TM-750
Download   TM-206_TM-207_TM-750 Brochure ( 955kb )
