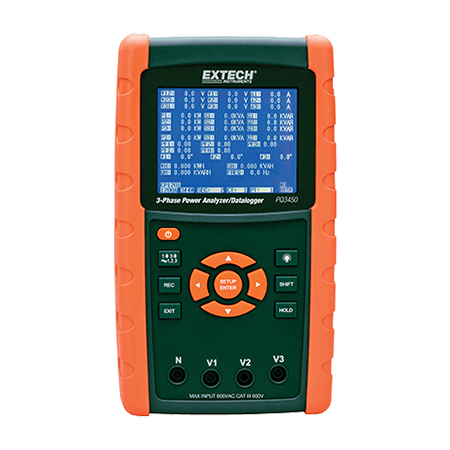

3-Phase Power Analyzer/Datalogger รุ่น Extech PQ3450

3-Phase Power Analyzer/Datalogger Datalogging Power Analyzer (up to 30,000 sets of measurements) ยี่ห้อ Extech, USA

รหัสสินค้า: EXTECH PQ3450 หมวดหมู่:

รายละเอียด

Extech PQ3450: 3-Phase Power Analyzer/Datalogger

PQ3450 : 3-Phase Power Analyzer/Datalogger ยี่ห้อ Extech, USA

Datalogging Power Analyzer (up to 30,000 sets of measurements)

The PQ3450 is a 3-phase power analyzer/data logger capable of logging up to 30,000 sets of measurements in Excel format on a removable SD memory card. The product is easy-to-hold with a rugged over molded housing and features a built-in clock and calendar, 35 parameters and a CAT III 600V safety rating. Complete with a year warranty, 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240 Volt AC adaptor and case. Clamp probes sold separately.

Features:

  • Large dot-matrix sun-readable numerical backlit LCD with easy-to-use onscreen menu
  • Full system analysis with up to 35 parameters:
    • V (phase-to-phase) V (phase-to-ground)
    • A (phase-to-ground)
    • KW / KVA / KVAR / PF (phase)
    • KW / KVA / KVAR / PF (system)
    • KWH / KVAH / KVARH / PFH (system)
    • Phase angle
  • Optional 200A, 1200A Current Clamps or 3000A Flexible Current Probes (sold separately)
  • Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
  • Log up to 30,000 reading on a removable SD memory card in Microsoft Excel® format
  • Wide sampling rate range (2 seconds to 2 hours)
  • Built-in Clock and Calendar
  • Complete with 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240V AC adaptor and case. Clamp probes sold separately.
Specifications:
Unit Range Basic Accuracy
 AC Voltage (True rms) 600.0V ±(0.5%rdg)
 AC Current 3000A ±(0.5%rdg)
 Active Power (MW) 9.999MW ±(1.0%rdg)
 Apparent Power (MVA) 9.999MVA ±(1.0%rdg)
 Reactive Power (MVAR) 9.999MVAR ±(1.0%rdg)
 Power Factor 0.00 to 1.00 ±0.04
 Frequency Range 45Hz to 65Hz ±0.1Hz
 Phase -180° to +180.0° ±1°
 Current Clamp input 200mV, 300mV, 500mV ±(0.5%rdg)
1V, 2V, 3V; user-selectable
 Active Power Energy (MWH) 0.0kWh to 9.999MWH ±(2.0%rdg)
 Apparent Power Energy (MVAH) 0.0KVAh to 9.999MVAH ±(2.0%rdg)
 Reactive Power Energy (MVARH) 0.0kVARh to 9.999MVARH ±(2.0%rdg)
 Datalogging 30,000 readings (2GB SD memory Card)
 Dimensions 8.86 x 4.92 x 2.52″ (225 x 125 x 64mm)
 Weight Meter: 2.2lbs (1010g)

CE  UL CAT III 600V  warranty12

Accessories:

  • Complete with a year warranty, 4 voltage leads with alligator clips, 8 AA batteries, SD card, 100-240 Volt AC adaptor and case. Clamp probes sold separately.
3-Phase Power Analyzer/Datalogger รุ่น Extech PQ3450

Ordering Information:
PQ3450……….3-PhasePower Analyzer/Datalogger
PQ34-2………..200A Current Clamp Probes (set of 3)
PQ34-12………1200A Current Clamp   Probes   (set  of 3)
PQ34-30………3000A Flexible Current Clamp   Probes   (set  of 3)
PQ1000……….Voltage Test  Leads   with  Alligator Clips  (4 leads)

Available Kits:
PQ3450-2……..200A Power Analyzer Kit: PQ3450 with  PQ34-2
PQ3450-12…..1200A   Power   Analyzer Kit:  PQ3450 with  PQ34-12
PQ3450-30…..3000A   Power   Analyzer Kit:  PQ3450 with  PQ34-30

หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
