รายละเอียด
แคลมป์มิเตอร์ เครื่องวัดกระแสไฟฟ้า Clamp-on Meter > AC/DC Clamp meter

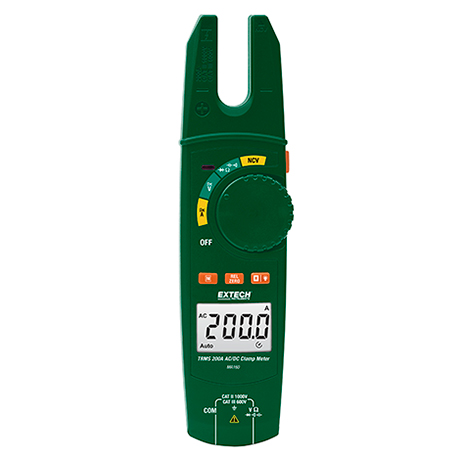

MA160: True RMS 200A AC/DC Open Jaw Clamp Meter ยี่ห้อ Extech, USA
Compact AC/DC Clamp Meter with Built-In Non-Contact Voltage Detector
The MA160 is an open jaw TRMS 200A AC/DC clamp meter. Its open jaw design provides quick current measurements in tight locations without breaking the circuit. True RMS provides accurate readings on noisy, distorted or non-sinusoidal waveforms. Convenient built-in Non-Contact Voltage (NCV) Detector allows quick detection of live voltages while the LED backlight, with two level brightness, and flashlight help take measurements in dimly lit environment. The MA160 also features AC Voltage to 750V, DC Voltage to 100V, Resistance, Capacitance, Continuity and Diode test as well as auto power off and ergonomic housing with built in test lead holders. Complete with test leads, two AA batteries, and pouch
Features:
- 0.57″ (14.5mm) open jaw size allows current measurements in tight spaces
- Built-in Non-Contact Voltage (NCV) detector with audible alert and LED indicator
- Relative Mode for Capacitance Zero and offset adjustment
- 2000 count 2-level backlit LCD display
- Built-in LED worklight for viewing in dimly lit area
- Functions include: NCV, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Continuity, Diode Test
- Auto Power Off with disable
- Ergonomic housing with built-in test lead holders

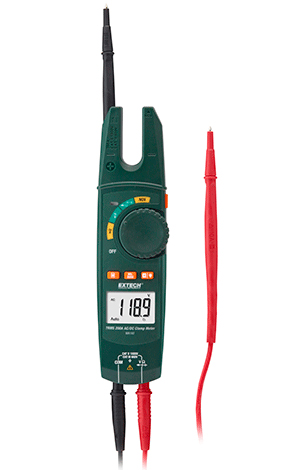

- Complete with test leads, 2 AA batteries and pouch
For complete specs please download the product datasheet (not available for some accessories)
Specifications:
| Unit | Range | Basic Accuracy |
| AC/DC Current | 200A (0.1A) | ±(2.5%+5d) |
| AC Voltage | 750V (1mV) | ±(2.5%+3d) |
| DC Voltage | 1000V (1mV) | ±(0.8%+3d) |
| Non-Contact Voltage (NCV) | 100 to 750V | |
| Resistance | 60MΩ (0.1Ω) | ±(1.0%+2d) |
| Capacitance | 60mF (0.01nF) | ±(4.0%+20d) |
| Continuity /Diode Test | Yes | |
| Dimensions | 8.3×2.1×1.4″ (210x53x35mm) | |
| Weight | 5.8oz (164g) | |
 |
Open jaw design provides quick current measurements in
tight locations without breaking the circuit. True RMS provides accurate readings on noisy, distorted or non-sinusoidal waveforms. Convenient built-in Non-Contact Voltage (NCV) Detector allows quick detection of live voltages while the LED backlight, with two level brightness, and flashlight help take measurements in dimly lit environment. |
หมายเหตุ ::
• ราคาสินค้ารวม ยังไม่รวมภาษีมูลค่าเพิ่ม 7%
• ราคาสินค้าไม่รวมค่าขนส่ง
• สเปคและราคาสินค้าอาจมีการเปลี่ยนแปลงโดยไม่แจ้งให้ทราบล่วงหน้า
Download ดาวน์โหลดไฟล์ข้อมูลสินค้า
